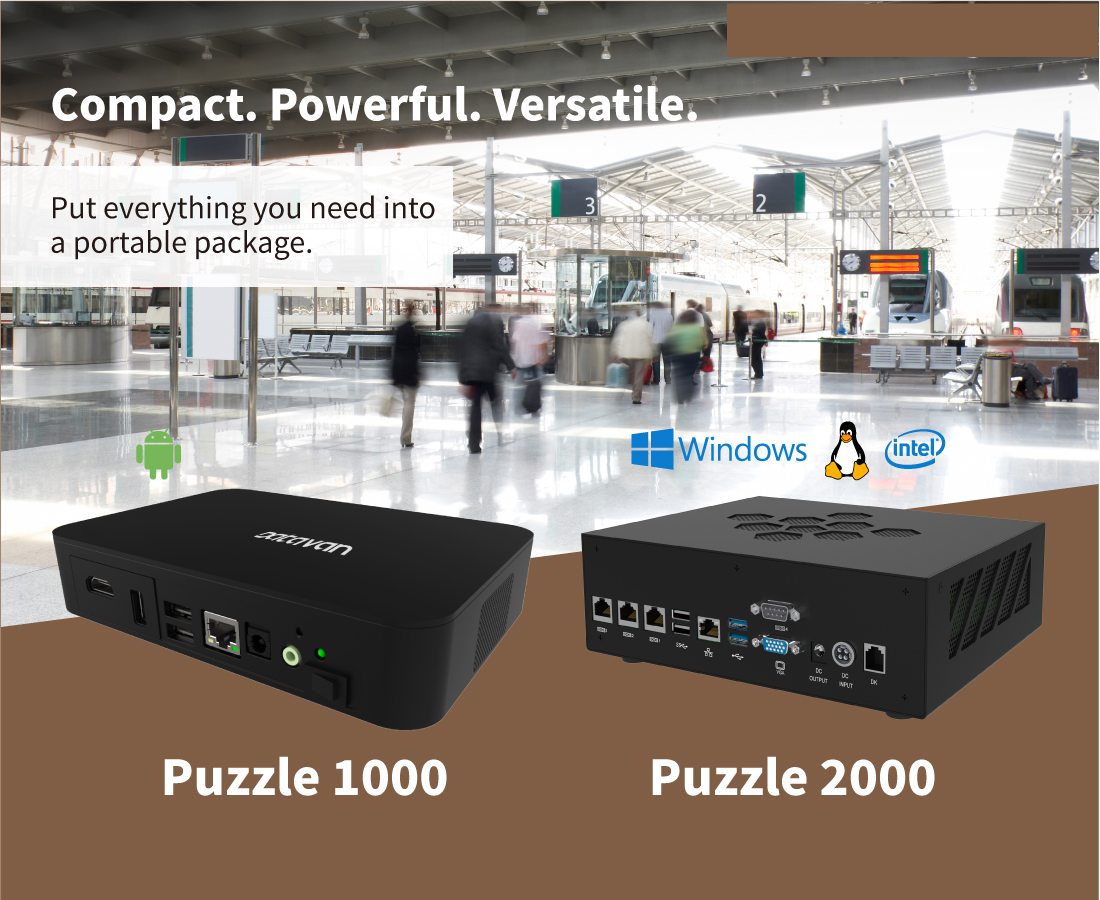

Puzzle 1000
The platform that open up more business possibilities
Cortex-A17 RK3288 Quad-core 1.6GHz
Compact and space-saving
Fanless, noise-free
Tailored to business-specific needs
Wall mount support
PUZZLE 1000
Meet the platform that open up more business possibilities.

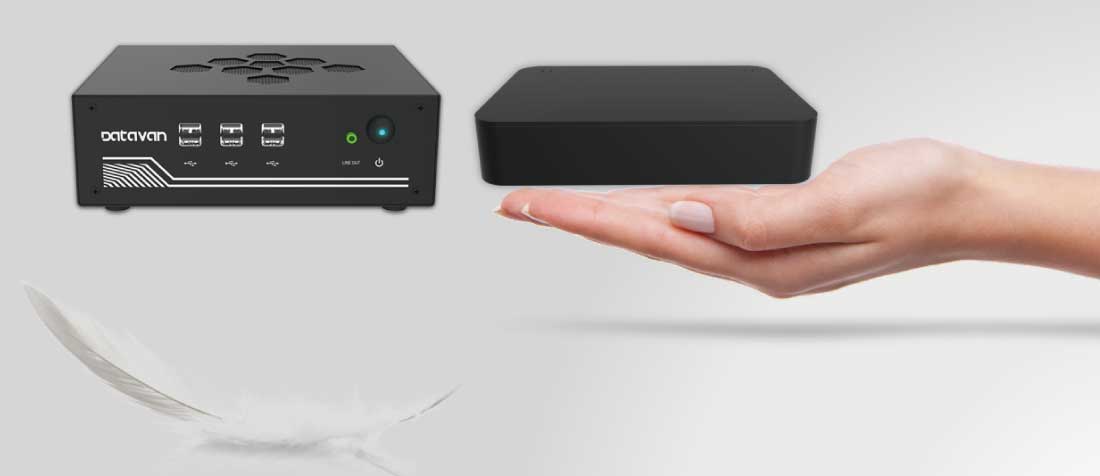

Small, yet Powerful
Packs plenty of power into a palm-sized package. This lightweight design makes it easy to deploy and store.

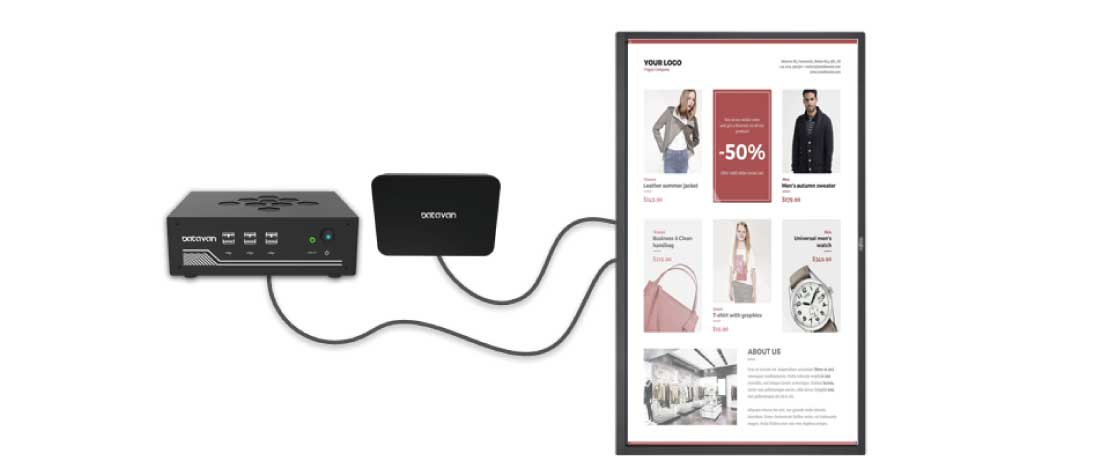

Tailored to Specific Needs
Deliver reliability and stability to empower your business.
Mount it Anywhere
The enclosure is compatible with VESA mounting bracket, which means you can mount the Puzzle on a wall, under a counter, or inside a kiosk enclosure.

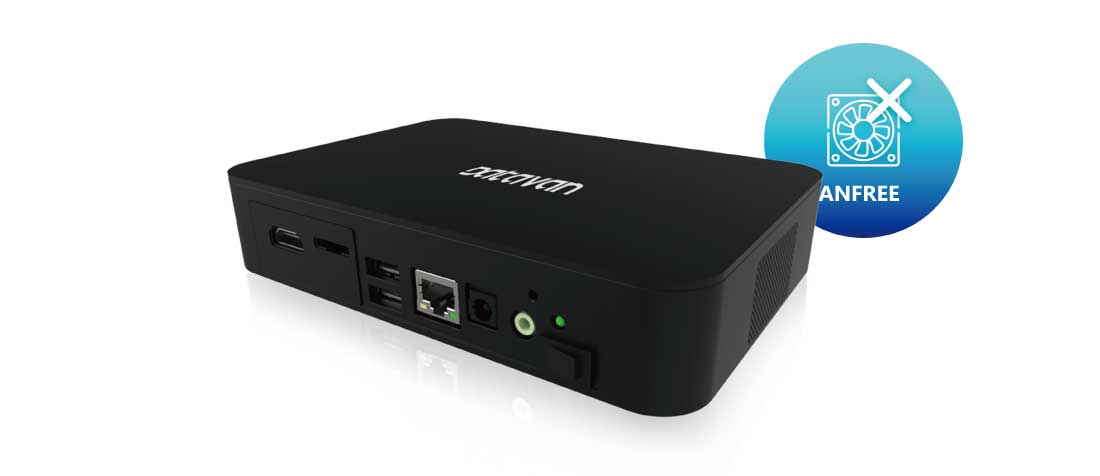

Fan-free, Noise-free
Fanless computing adds increased reliability and durability. Ideal for noise-intolerance and harsh industrial environment.
| Model Number | Puzzle-1000 | ||
|---|---|---|---|
| System | |||
| CPU | RK3288 Quad-core 1.6 GHz | ||
| RAM | 2G (default) / 4G (option) | ||
| OS | Android 7.1 | ||
| Storage | eMMC 16G (default) / 32G (option) | ||
| I/O | |||

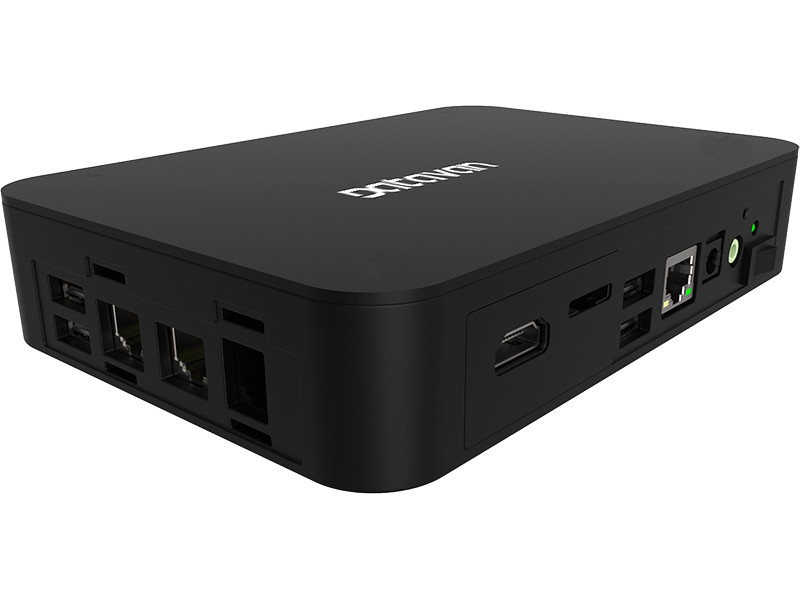

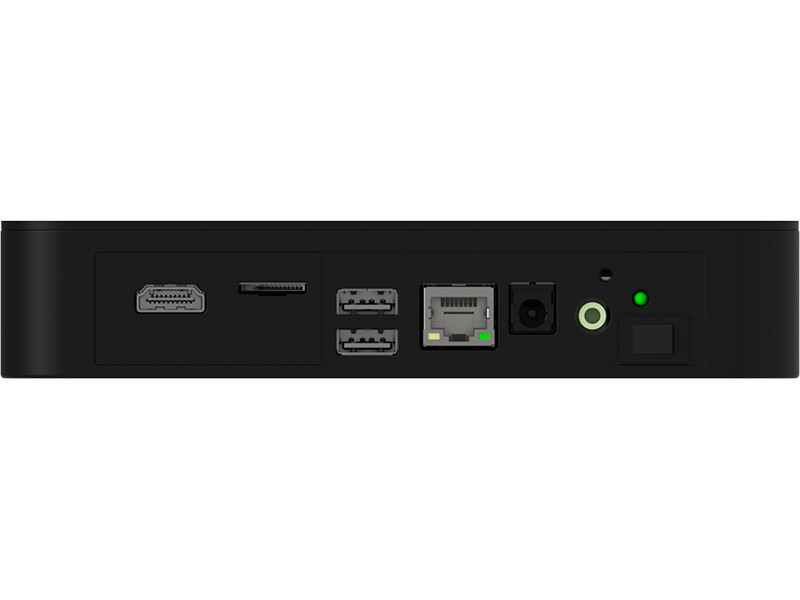

| Standard I/O | 4×USB 2.0 2×RJ-50 RS-232 1×RJ45 1×RJ 11 12V/24V (default 24V for Cash Drawer) 1×HDMI 1×Line out 1×Micro SD slot 1×DC 12V In for DC In |
||
| Buttons | 1×Power On/Off Button | ||
| Power | |||
| Adapter | External DC Power Adapter 60W, 12V 5A | ||
| Mechanical | |||
| Dimensions (W×D×H) | 177×122×40 mm (6.97×4.8×1.57 in) | ||
| Weight | 0.8 kg (1.76 lb) | ||
| Environment | |||
| Operating Temperature | 0°C to 40°C (32°F~104°F) | ||
| Storage Temperature | -25°C to 70°C (-13°F~158°F) | ||
