Puzzle 3000
Flexible configurations to meet diverse needs.
Equipped with Intel® Celeron® processors, compatible with Windows 10/11 IoT and Linux
Rich I/O ports, suitable for various peripherals
Designed to withstand industrial environments
Low power consumption for high efficiency
Tailored to Specific Needs
Deliver reliability and stability to empower your business.

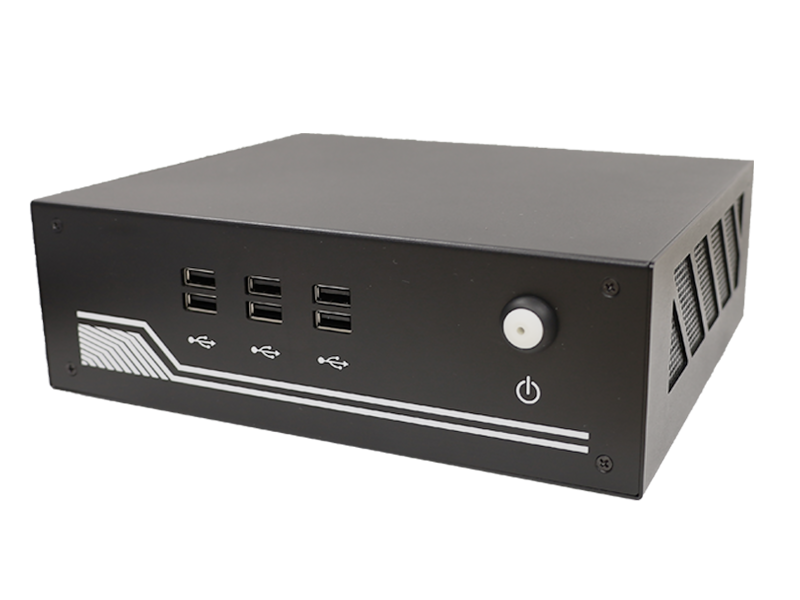

PUZZLE 3000
As powerful as a Tower PC, yet still compact.
Mount it Anywhere
The enclosure is compatible with VESA mounting bracket, which means you can mount the Puzzle on a wall, under a counter, or inside a kiosk enclosure.

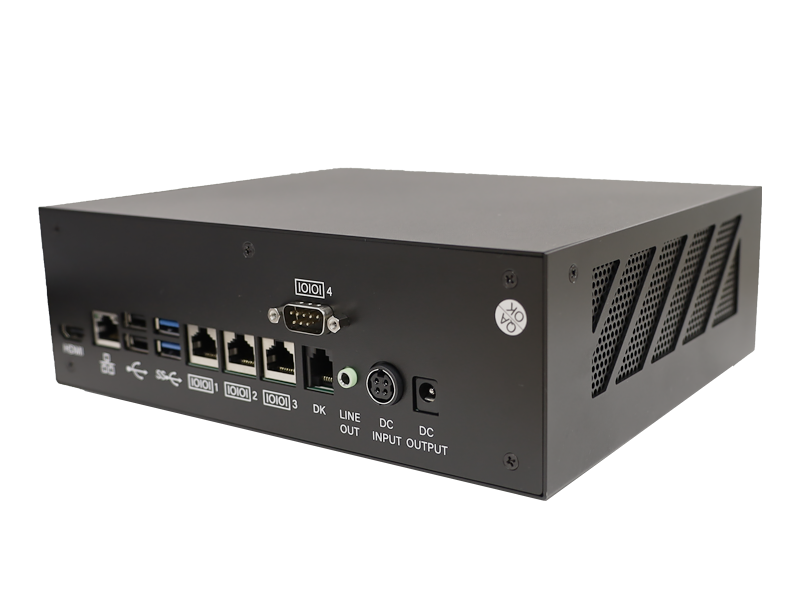

| Model Number | Puzzle-3000 | ||
|---|---|---|---|
| System | |||
| CPU | RK3288 Quad-core 1.6 GHz | ||
| RAM | 2G (default) / 4G (option) | ||
| OS | Android 7.1 | ||
| Storage | eMMC 16G (default) / 32G (option) | ||
| I/O | |||
| Standard I/O | 4×USB 2.0 2×RJ-50 RS-232 1×RJ45 1×RJ 11 12V/24V (default 24V for Cash Drawer) 1×HDMI 1×Line out 1×Micro SD slot 1×DC 12V In for DC In |
||
| Buttons | 1×Power On/Off Button | ||
| Power | |||
| Adapter | External DC Power Adapter 60W, 12V 5A | ||
| Mechanical | |||
| Dimensions (W×D×H) | 177×122×40 mm (6.97×4.8×1.57 in) | ||
| Weight | 0.8 kg (1.76 lb) | ||
| Environment | |||
| Operating Temperature | 0°C to 40°C (32°F~104°F) | ||
| Storage Temperature | -25°C to 70°C (-13°F~158°F) | ||
