MARS Series
Multiple screen size self-service KIOSK
21.5"/23.8"/27"/32" True flat and full sealed front touch panel
Modularized design for easy maintenance
Longevity support for product lifetime
Industrial grade power supply and power distribution board provide good power
on sequence for system devices
Wide range of peripherals in self-service applications such as 2D scanner, printer, RFID, NFC, camera, mic, speaker and bracket for EMV payment devices

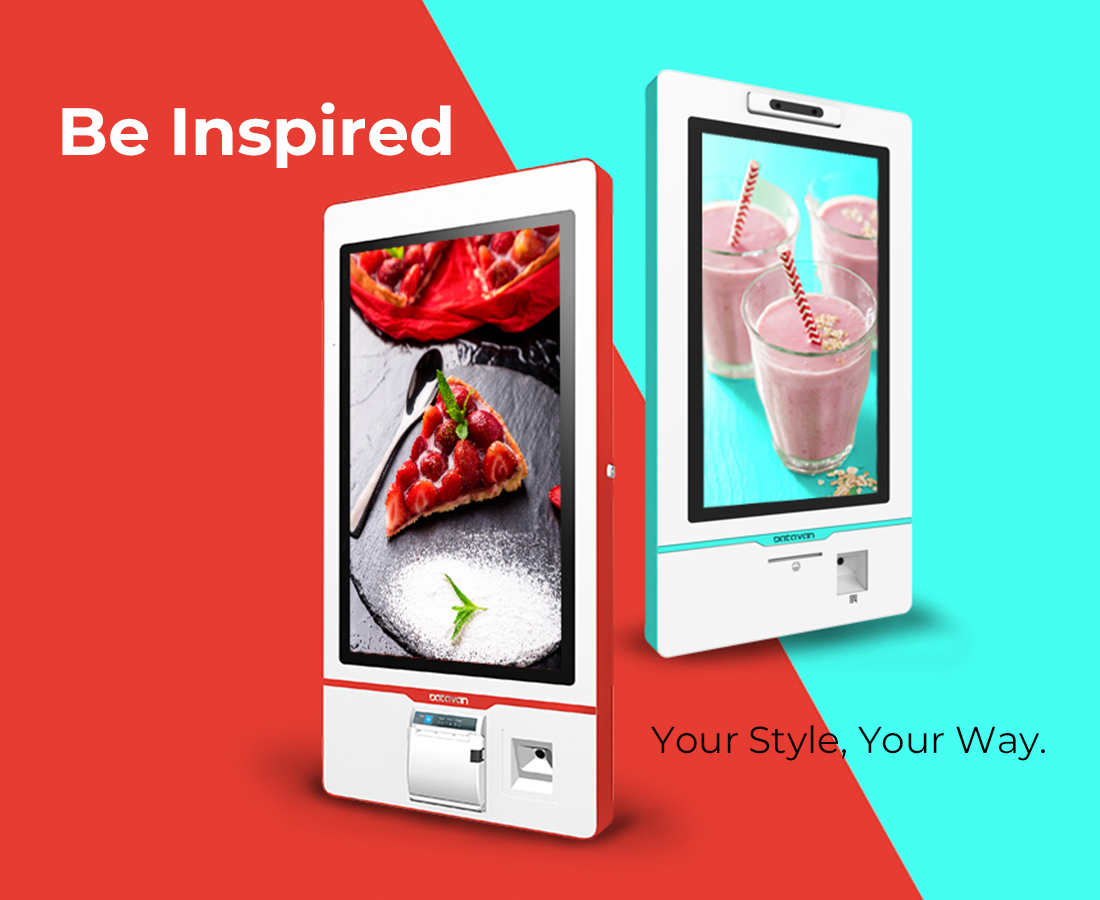

Tailor-made Gratifies Your Needs

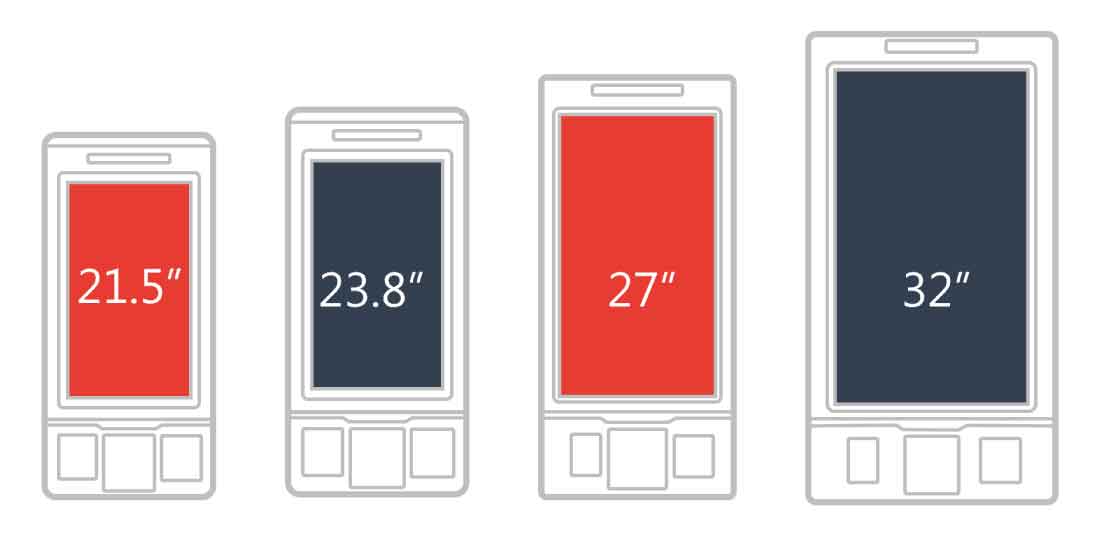

A 1080p FHD display comes in four different panel sizes that serve the digital content with optimal readability and viewing experience.

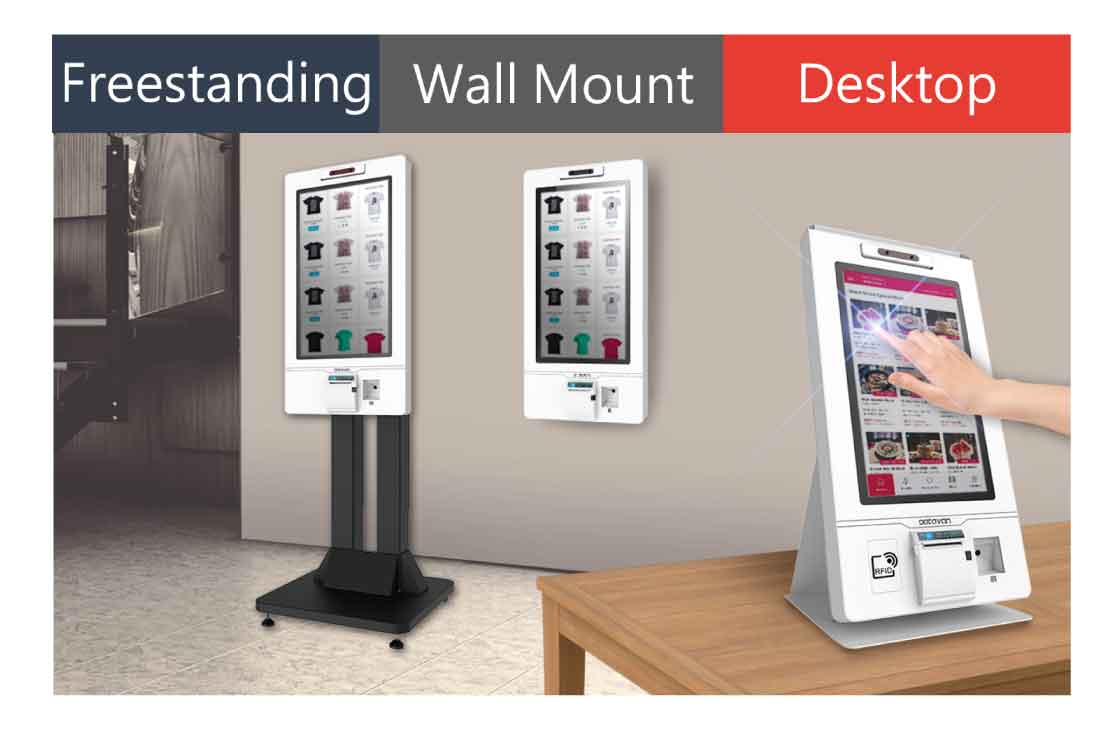

Be Placed Anywhere
Mars offers different types of mounting system, simplifying installation and eliminating clutters from your Kiosk area

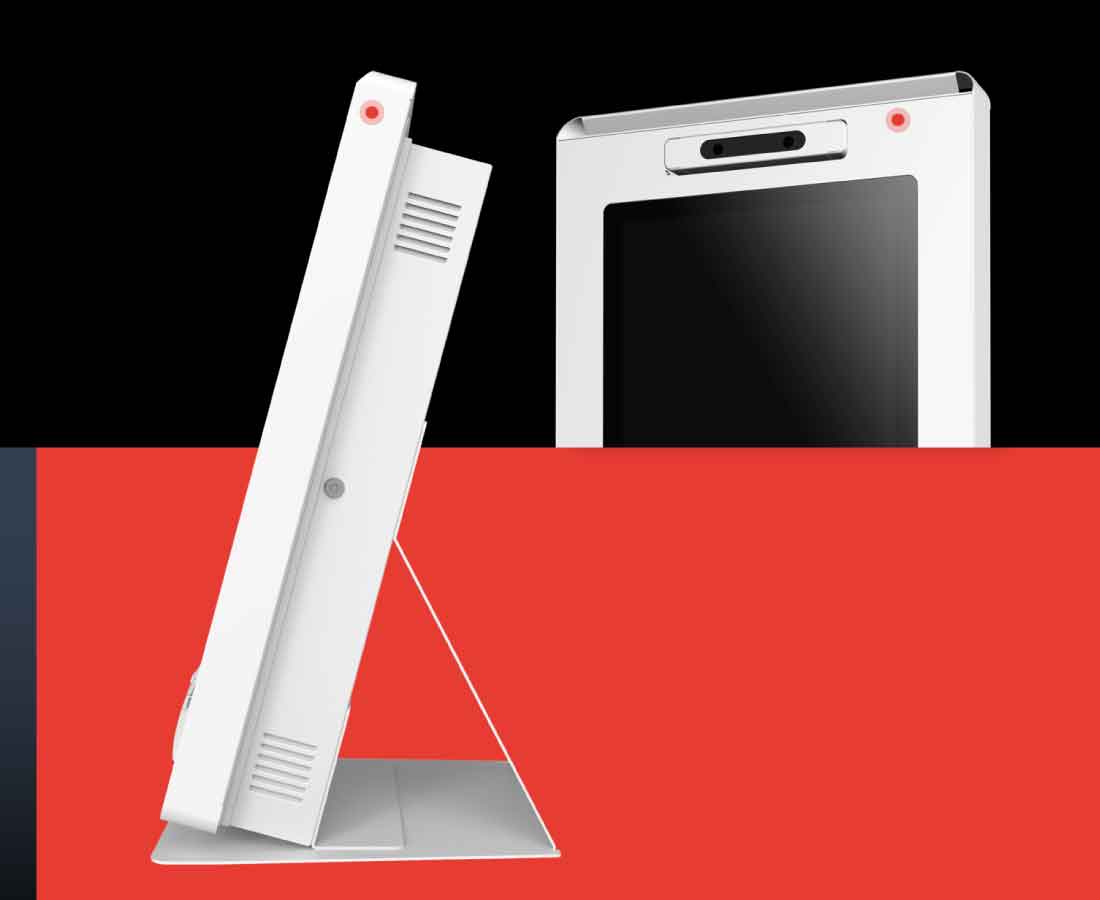

Aesthetic Design
● SECC
● Rapidly Build& Work
● 50mm Ultra-thin

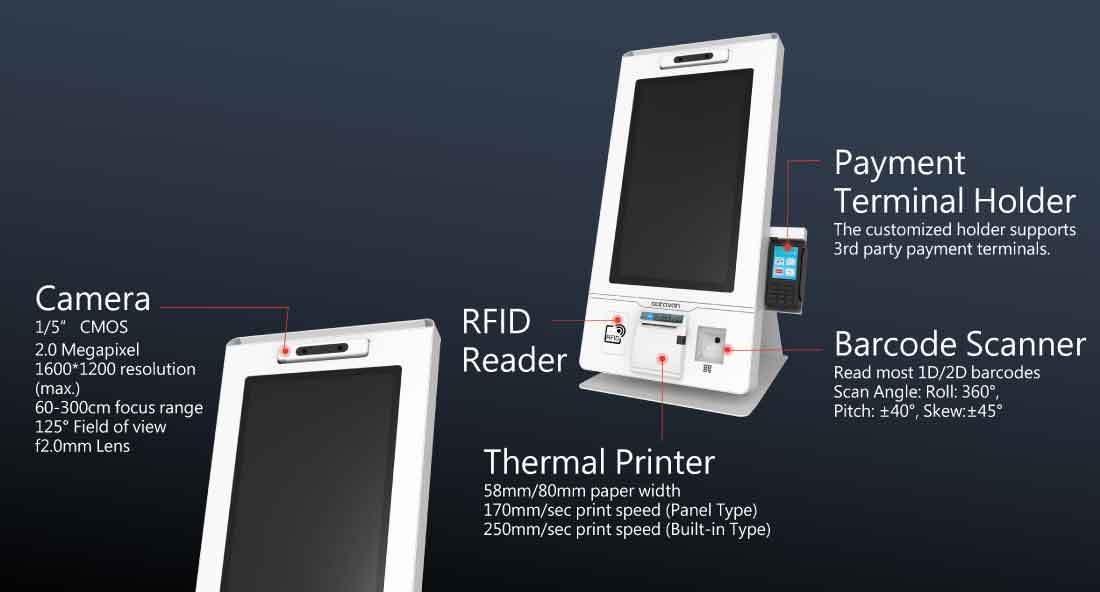

Fully Equipped
● Camera
● RFID Reader
● Payment Terminal Holder
● Thermal Printer
● Barcode Scanner
Comprehensive
Fully support Windows, Linux and Android apps, Mars makes you enable to run all your business applications
Applications
| Model Number | M-2210 M-2410 M-2710 M-3210 |
M-2220 M-2420 M-2720 M-3220 |
M-2240 M-2440 M-2740 M-3240 |
|
|---|---|---|---|---|
| System | ||||
| CPU | Puzzle 1000 Rockchip RK3288 Quad-core 1.8GHz |
Intel® Celeron® J1900 Quad-core 2.4GHz | Puzzle 4000 Intel Core™ i3 Quad core 2.3GHz |
Puzzle 4000 Intel Core™ i5 Quad core 2.4GHz |
| RAM | 2G/4G | 4G/8G | 4G/8G/16G | 4G/8G/16G |
| Storage | On board EMMC 16GB Default/32GB Max. |
M.2 SSD 512GB Max. | SSD: 64G/128G/256G or HDD: 500G | SSD: 64G/128G/256G or HDD: 500G |
| OS | Android 7.1 | Win Embedded POSReady7/Win 10 IoT Enterprise 2016 LTSB/Win 10 IoT Enterprise 2019 LTSC/Linux Kernel 3.1 or above |
Win 10 IoT Enterprise 2016 LTSB/Win 10 IoT Enterprise 2019 LTSC/Linux Kernel 4.0 or above |
|
| Display | ||||
| Type | 21.5"/23.8"/27"/32" | |||
| Resolution | 1900×1280 pixels | |||
| Brightness | 300 nits (21.5"/23.8"/27") 400 nits (32") |
|||
| Touchscreen | Flat Projected Capacitive Touch | |||
| I/O | ||||
| LAN Port | 1×Gigabit Ethernet port | |||
| AC Power Inlet | 1×AC Power inlet | |||
| Optional Devices | ||||
| Speaker | 2×3W Stereo speaker | |||
| Printer | 1×Thermal printer 250mm/sec print speed (Built in Type) 58mm/80mm paper width | |||
| Barcode Scanner | Read most 1D/2D barcodes Scan Angle: Roll: 360°, Pitch: ±40°, Skew: ±45° |
|||
| RFID Reader | Frequency 13.56MHz. ISO14443A card type MIFARE® | |||
| Wireless Device | 2.4G WiFi Bluetooth 4.0 module with external antenna | |||
| Camera and MIC | 1/5" CMOS 2.0 Megapixel 1600×1200 resolution (max.) 60-300 cm focus range 125° Field of view Digital MIC |
|||
| Payment Device Holder |
Support customized bracket for payment terminal | |||
| Mechanical | ||||
| Mounting Method | 21.5" | 23.8" | 27" | 32" |
| VESA Mounting Dimensions (W×H×D) | 376×840×160 mm (148×330.7×63 in) |
408×894×160 mm (160.6×352×63 in) |
454×946×160 mm (178.7×372.4×63 in) |
518×1047×175 mm (203.9×412.2×69 in) |
| Desk Mounting Dimensions (W×H×D) | 376×851.2×429.9 mm (148×355.1×169.3 in) |
407.6×901.7×429.9 mm (160.5×355.1×169.3 in) |
NA | NA |
| Free Standing Dimensions (W×H×D) | 376×1581×303.5 mm (148×622.4×119.5 in) |
407.6×1634.9×303.5 mm (160.5×643.7×119.5 in) |
434×1686.6×303.5 mm (170.8×664×119.5 in) |
517.6×1787.9×315.5 mm (203.8×703.9×124.2 in) |
| VESA Mounting Weight (NW) | 30 kg (55 lb) | 33 kg (60.5 lb) | 40 kg (73.4 lb) | 50 kg (91.7 lb) |
| Desk Mounting Weight (NW) | 34.5 kg (63.3 lb) | 37.5 kg (68.8 lb) | NA | NA |
| Free Standing Weight (NW) | 65 kg (119.3 lb) | 68 kg (124.8 lb) | 75 kg (137.6 lb) | 85 kg (115.9 lb) |
| Environment | ||||
| Operating Temperature | 0°C to 40°C (32°F~104°F) | |||
| Storage Temperature | -25°C to 70°C (-13°F~158°F) | |||
| Safety Certifications | CE/FCC | |||
