Genius
21.5” Self-Service Kiosk
21.5" full-flat capacitive touchscreen display
Sleek and minimalist design
Versatile installation options - floor-standing or countertop
Rotatable screen for both portrait and landscape display
Modular design for easy maintenance
Ideal for a range of industries, including retail, banking, hospitality, and airports

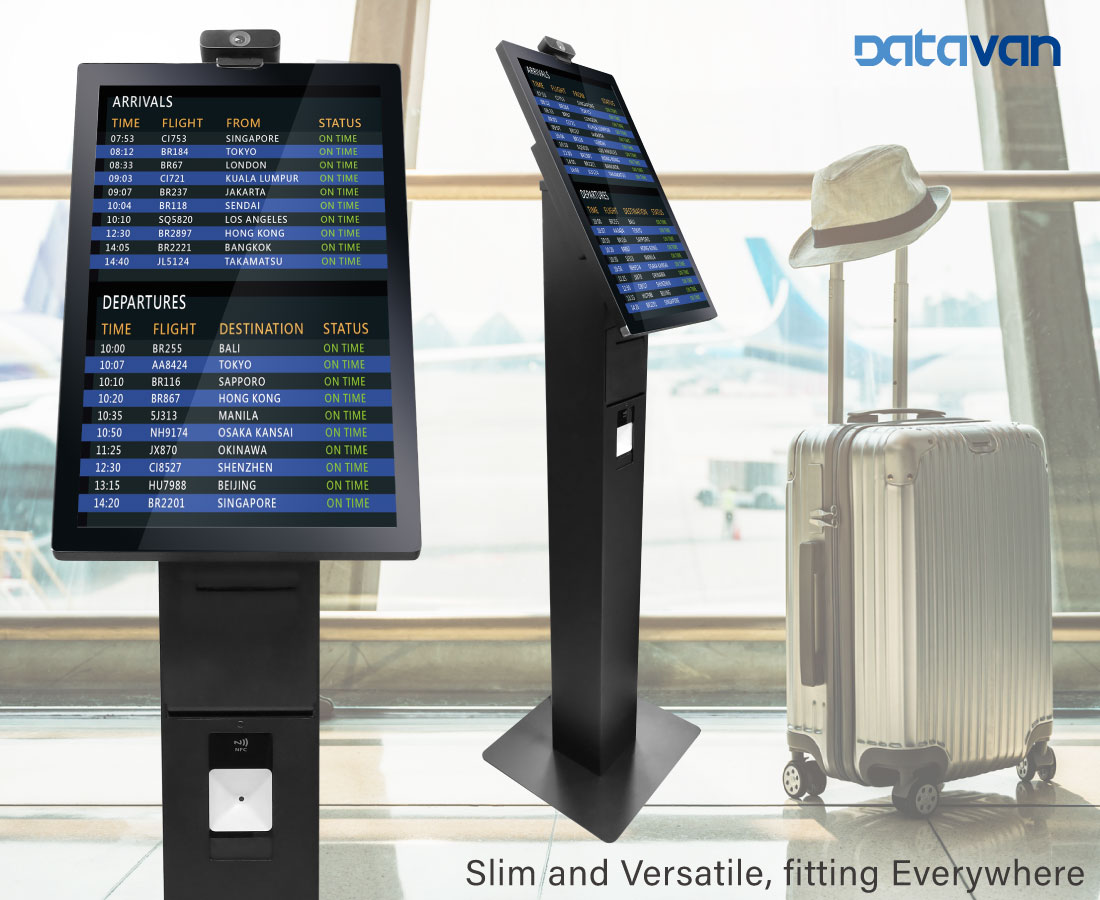

Slim, Stylish, Universally Charming
Genius features a sleek and slim design, making it suitable for various environments such as retail, food and beverage, and tourism.
A Wide Range of Extension Kits to Meet Diverse Needs
Highly expandable, allowing flexible integration with extension kits such as microphones, cameras, printers, scanners, wireless modules (Wi-Fi and Bluetooth), and card reader stands.

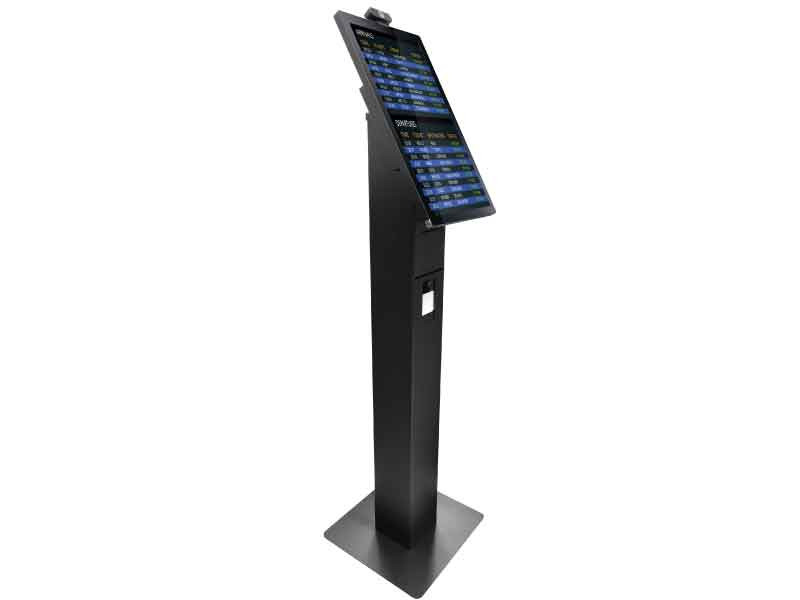

Flexible and Versatile Options
The screen can be adjusted vertically or horizontally according to needs, and the stand can be floor-standing or desktop, catering to a wide range of application scenarios.
An Easily Maintainable Modular Design
The entire device adopts a modular design, making it easy for assembly and maintenance.
| Model Number | Genius | |||||
|---|---|---|---|---|---|---|
| System | ||||||
| Processor | Intel Celeron J6412 | |||||
| OS | Win 10 IoT Enterprise 2021 LTSC | |||||
| Memory | RAM 4G | |||||
| Storage | SSD: 64G | |||||
| Display | ||||||
| Type | 21.5" LED Backlit LCD Display | |||||
| Resolution | 1920×1080 (FHD) | |||||
| Brightness | 350 cd/㎡ | |||||
| Touchscreen | Flat Projected Capacitive Touch | |||||
| Audio | ||||||
| Speaker | 3W speaker×2 | |||||
| Optional Devices | ||||||
| Printer | Thermal printer, 250mm/sec print speed (Built-in Type) 58mm/80mm paper width | |||||
| Barcode Scanner | Read most 1D/2D barcodes, Scan Angle: Roll:360°, Pitch:±60°, Skew:±60° | |||||
| Wireless Device | 2.4G Wi-Fi & Bluetooth 4.0 module with external antenna | |||||
| Camera and MIC | 1/5" CMOS, 2.0 Megapixel, 1600×1200 resolution (max.), 125° Field of view, Digital MIC | |||||
| Payment Device Holder | Support customized bracket for payment terminal | |||||
| Power | ||||||
| AC Input | 100V-240V ~ 1.8A, 50~60Hz | |||||
| Mechanical | ||||||
| Dimensions | 400×400×1506 mm (W×D×H) | |||||
| Environment | ||||||
| Operating Temperature | 0°C to 40°C (32°F to 104°F) | |||||
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) | |||||
