SATURN Series
鷹眼般的設計靈感 創造獨特的前衛特色
15吋無邊框觸控式螢幕，超薄外形
搭配多系統平台與作業系統因應多元應用

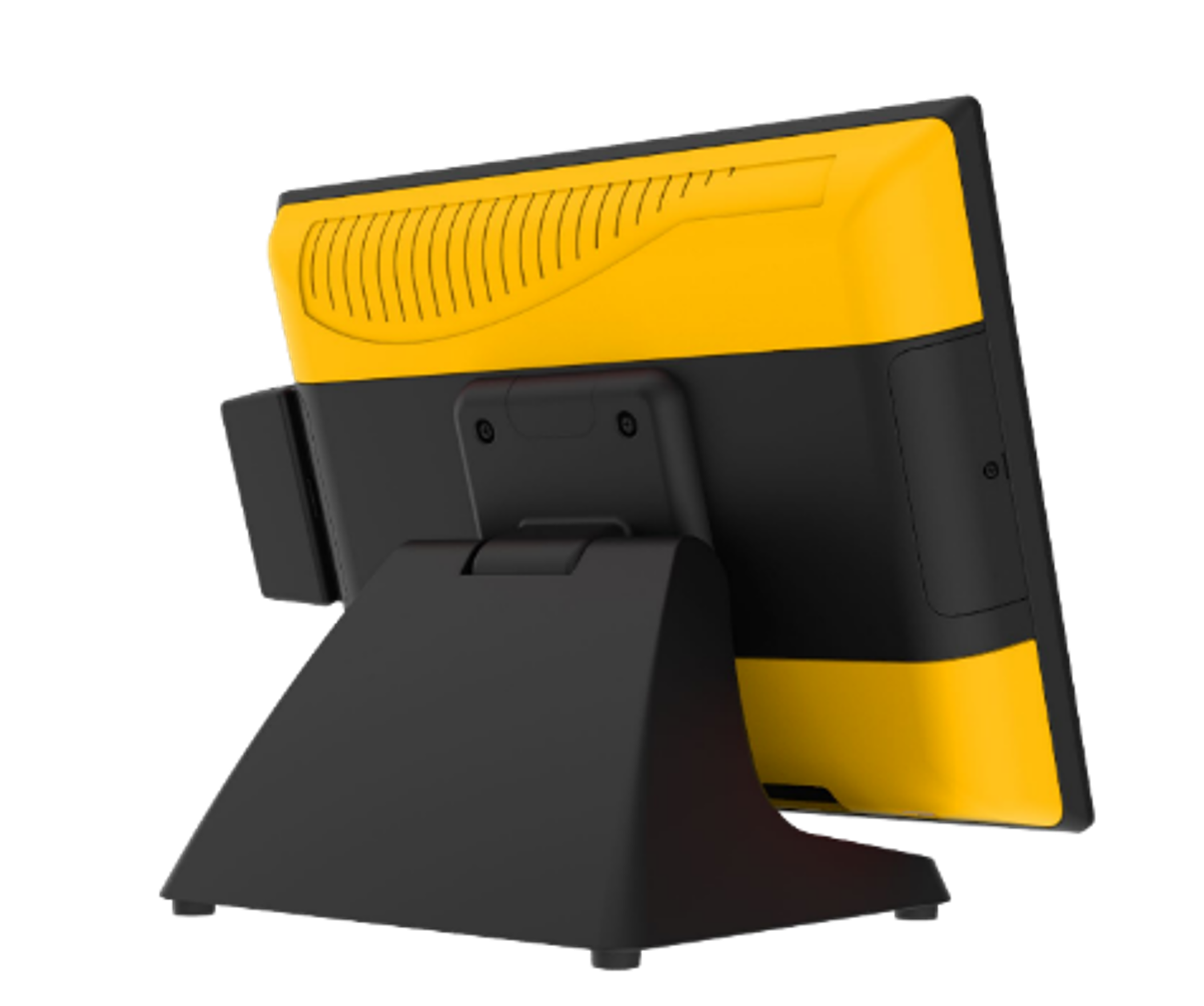

3種底座可供選擇

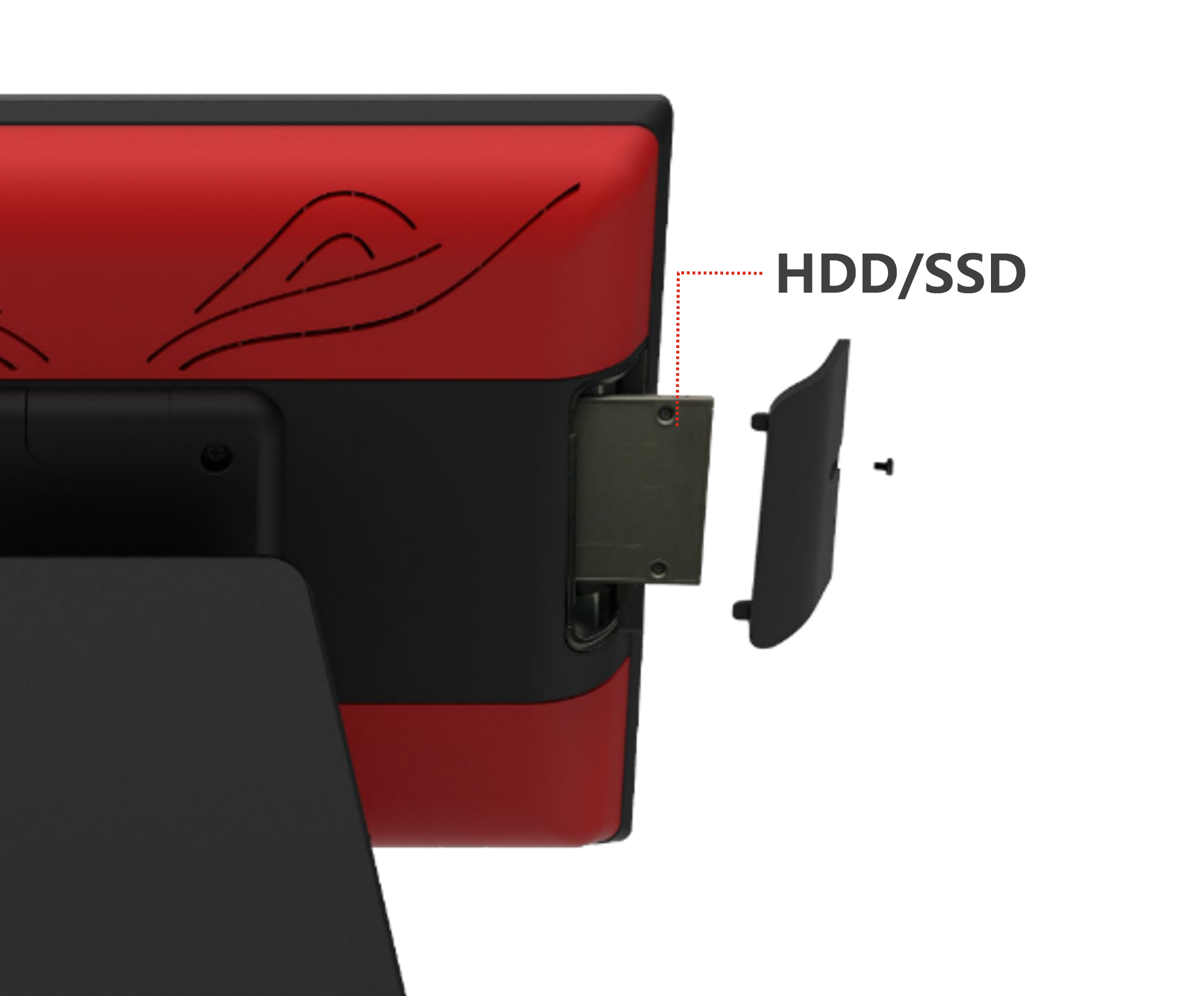

可輕鬆更換儲存硬碟(HDD/SSD)
客製化彩殼顏色任您選擇
豐富的配件可供選配
我的風格 任我搭配
產品特色

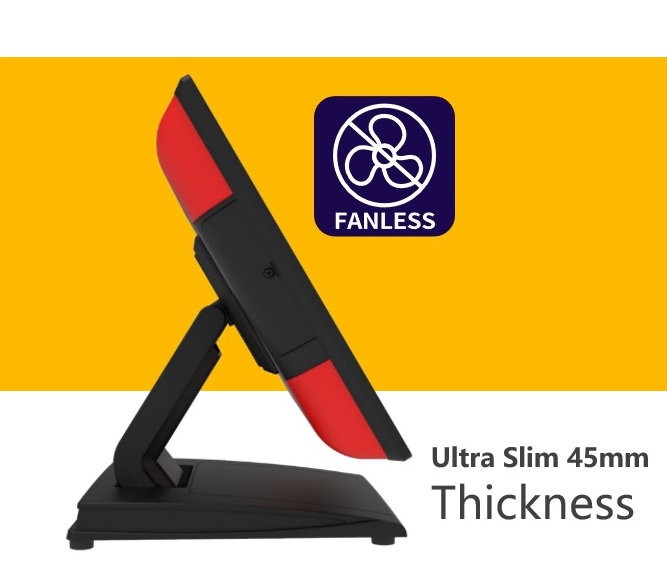

● 機身厚度僅4.5公分，完美融入各種營業空間
● 免去噪音及積塵的困擾，適應嚴苛的應用環境(限部份機種適用)
● 可快速變換產品配置及組態，發揮更多應用可能性
模組化架構
主部件均可藉由模組化快速更換，對於日後維護及更換相當容易

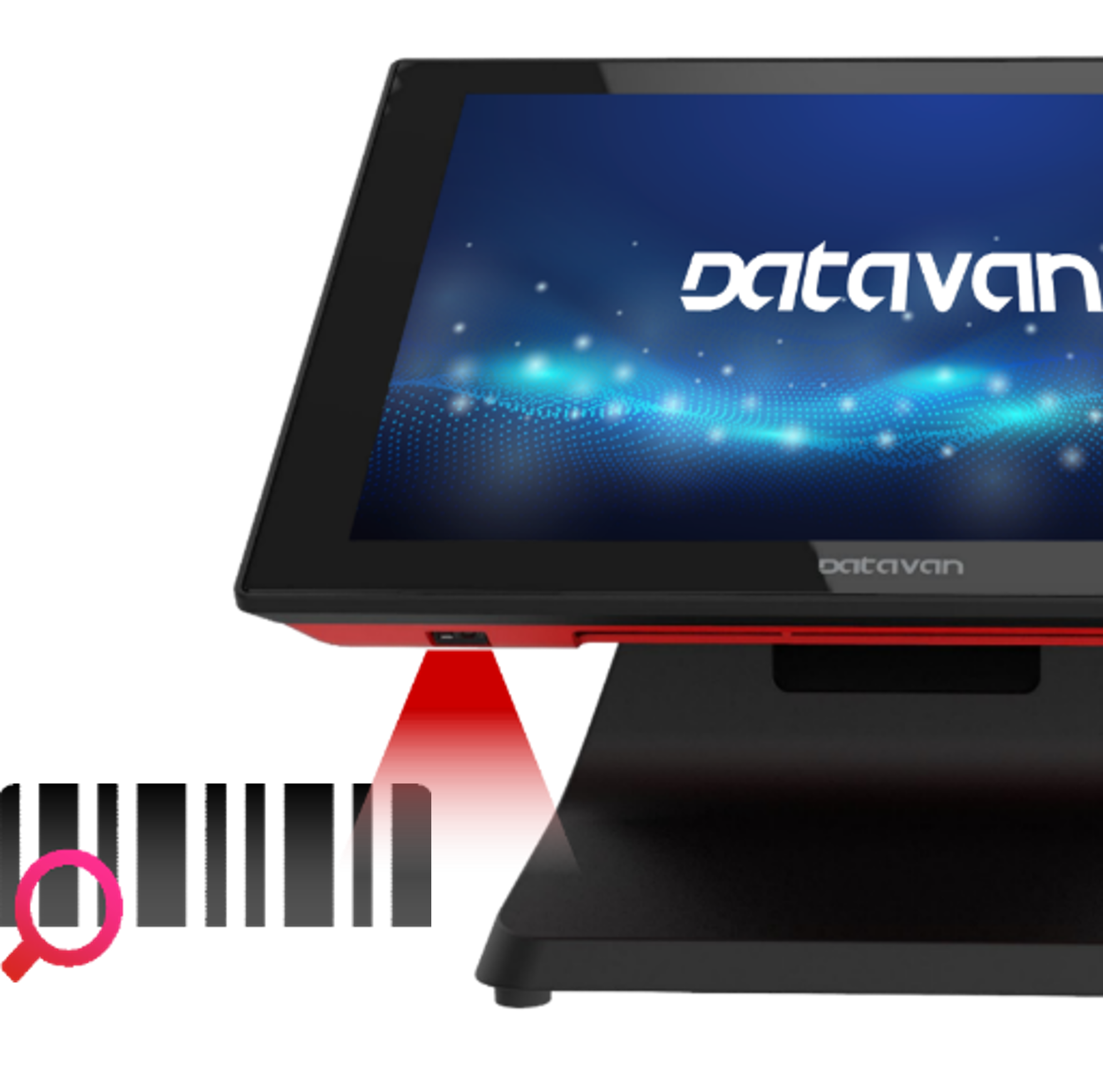

內建條碼掃描器
本體可選配內建式1D/2D條碼掃描器，實現POS機的進階用途或可做為KIOSK互動資訊站

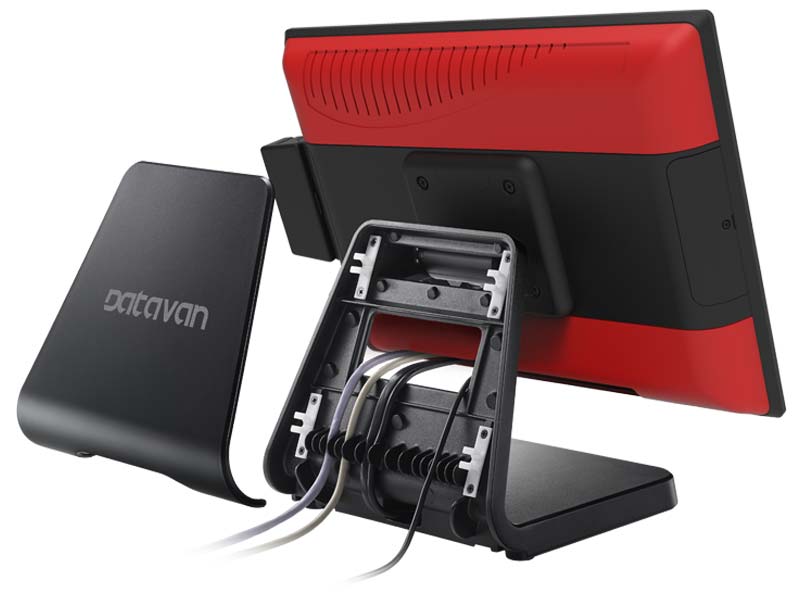

電線管理系統- W腳座
內置貼心的理線溝槽設計，讓整線任務更得心應手

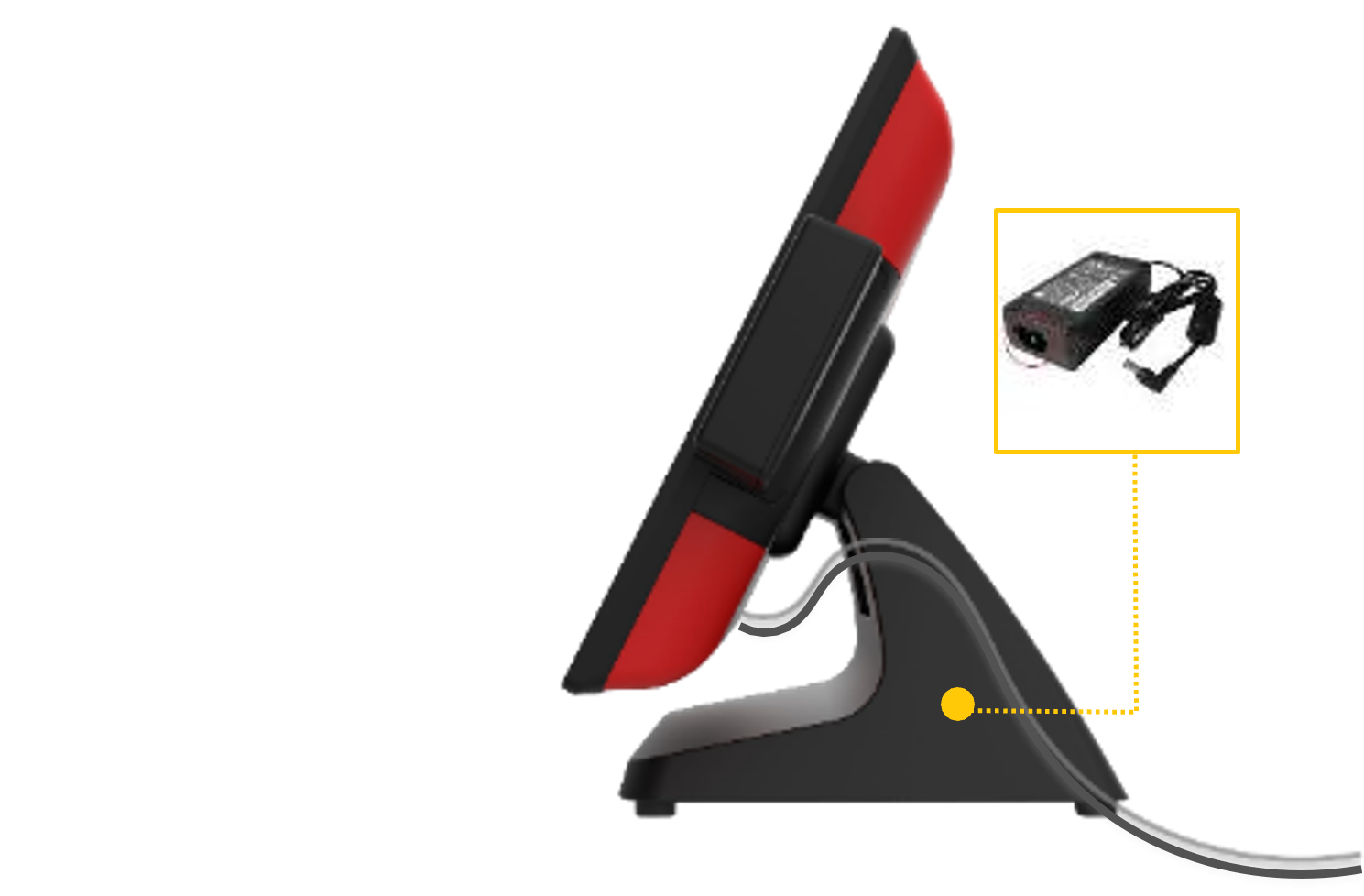

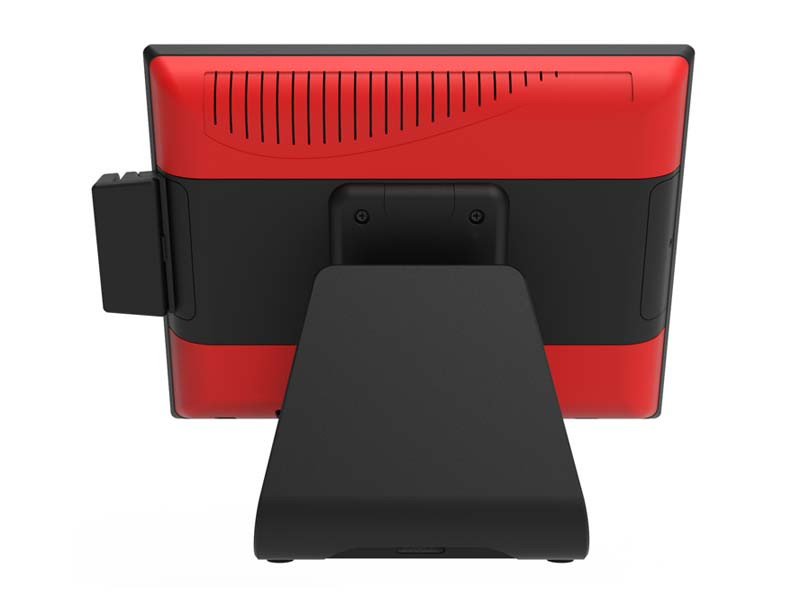

電線管理系統- L腳座
預留電源供應器的收納空間，避免誤觸拉扯導致損害

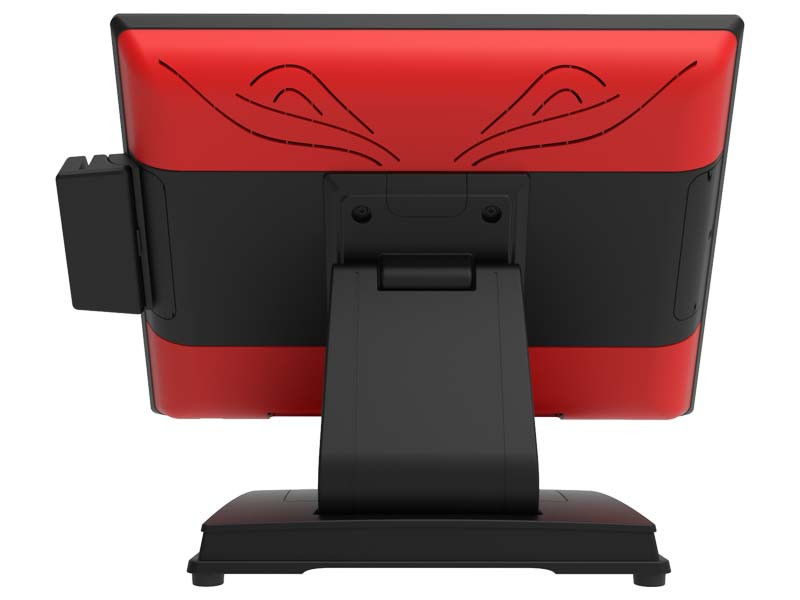

電線管理系統- E腳座
配有雙截式調整轉軸，高度及營幕視角皆可自由靈活地調整

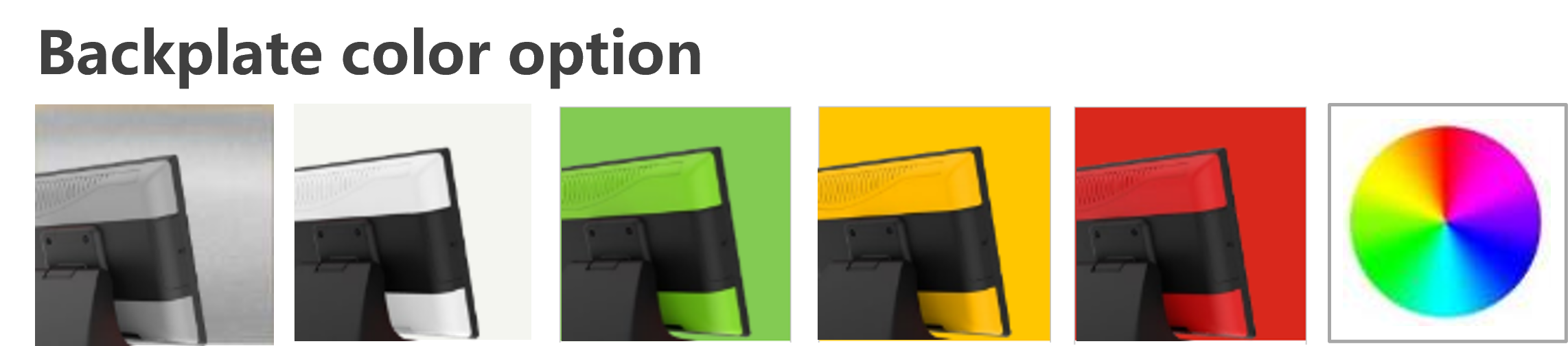

顏色多彩繽紛
產品飾蓋提供6種顏色可隨心選擇，採用高端的塗裝工藝，呈現出亮面或霧面質感，幫助襯託出您與眾不同的品牌個性
支援多種系統平台及效能
提供業界中最豐富的選項組合，涵蓋入門及進階效能，幫助業主精打細算，並降低入門建置成本
| Model Number | S-415 | S-615 | S-715 | |
|---|---|---|---|---|
| System | ||||
| Processor | RK3288 Quad-core1.6 GHz | Intel® Celeron® J1900 (Quad-core) | Intel® 7th Gen Kaby Lake Desktop Processor | |
| OS | Android 7.1 | Win 7 Pro Embedded / Win Embedded POSReady7 / Win 10 IoT Enterprise 2016 LTSB / Win 10 IoT Enterprise 2019 LTSC | Win 10 IoT Enterprise 2016 LTSB / Win 10 IoT Enterprise 2019 LTSC | |
| Memory | 2G (default) / 4G (optional) | 4G / 8G | 4G / 8G / 16G | |
| Storage | eMMC 16GB (default) / 32GB (optional) | SSD: 64G / 128G / 256G or HDD: 500G | ||
| LCD | ||||
| LCD Panel | 15" LED Backlit LCD Display | |||
| Resolution | 1024×768 Pixel (4:3) | |||
| Brightness | 300 cd/m2 | |||
| Touch | ||||
| Touch Screen | Flat Projected Capacitive Touch | |||
| I/O | ||||
| Standard I/O | 4×USB 2.0 1×USB OTG 1×DB9 RS-232 1×RJ45 Gigabit LAN 1×RJ-11 (default 24V for Cash Drawer) 1×HDMI 1×Micro SD slot 1×DC 12V In for DC power input |
3×USB 2.0 1×USB 3.0 3×RJ-50 RS-232 (default 0V; COM1, COM2, COM3 0V/5V/12V by Jumper) 1×RJ45 1×RJ-11 12V/24V (default 24V for Cash Drawer) 1×DB15 VGA 1×DC 12V Out for DC Out 1×DC 12V In for DC In |
2×USB 2.0 1×USB 3.0 3×RJ-50 RS-232 (default 0V; COM1, COM2, COM3 0V/5V/12V by Jumper) 1×RJ45 1×RJ-11 12V/24V (default 24V for Cash Drawer) 1×DB15 VGA 1×DC 12V Out for DC Out 1×DC 24V In with Lock for DC In |
|
| Buttons | 1×Power On/Off Button | |||
| Extension Kits (Optional) | MSR Card Reader Kit / RFID Reader Kit / i-Button Reader Kit / VFD Customer Display Kit / LCM Customer Display Kit / 10" 2nd Display Kit | MSR Card Reader Kit / RFID Reader Kit / i-Button Reader Kit / Fingerprint Reader Kit / 2D Scanner Kit / VFD Customer Display Kit / 10" 2nd Display Kit / 15" 2nd Display Kit | ||
| Speaker | 2×Internal Speaker (1W) | N/A | 2×Internal Speaker (1W) | |
| Power | ||||
| Adapter | External DC Power Adapter 60W, 12V / 5A | External DC Power Adapter 120W, 24V / 5A | ||
| Mechanical | ||||
| Dimensions (W×D×H) | N/A | S-615E: 365×241×305 mm (14.37×9.49×12 Inch) S-615L: 365×240×298 mm (14.37×9.45×11.73 Inch) S-615W: 365×241×322 mm (14.37×9.49×12.68 Inch) |
S-715E: 365×241×305 mm (14.37×9.49×12 Inch) S-715L: 365×240×298 mm (14.37×9.45×11.73 Inch) S-715W: 365×241×322 mm (14.37×9.49×12.68 Inch) |
|
| Weight | N/A | S-615E: 6.1 kg (13.45 lb) S-615L: 6.5 kg (14.33 lb) S-615W: 5.7 kg (12.57 lb) |
S-715E: 6.8 kg (15 lb) S-715L: 6.5 kg (14.33 lb) S-715W: 6.61 kg (14.57 lb) |
|
| Safety & Environment | ||||
| Operating Temperature | 0°C to 40°C (32°F to 104°F) | |||
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) | |||
| Safety Certifications | CE / FCC | |||
