TANGO Series

android linux windows

Enhance customer engagement

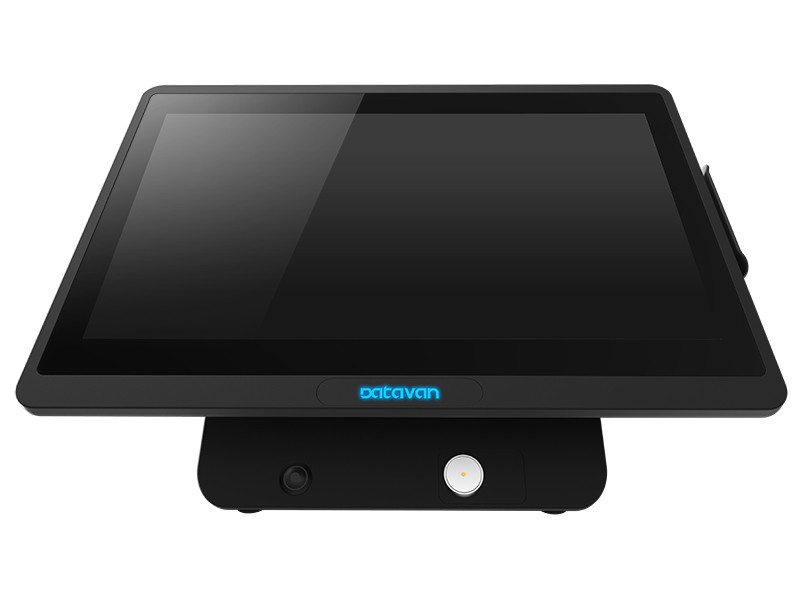

15.6-inch ultra-slim touch screen
Multiple system platform and OS for applications
Award-winning design for flip-over display
Extensive peripheral connectivity
"Building block" modular enclosure

The Perfect Combination of Cutting-edge Tech & Aesthetic Design

Tango POS creates a new retail experience that responds to the demands of OmniChannel marketing and mobile interaction necessary to compete in latest retail technology, representing a dynamic shift in traditional POS solution.

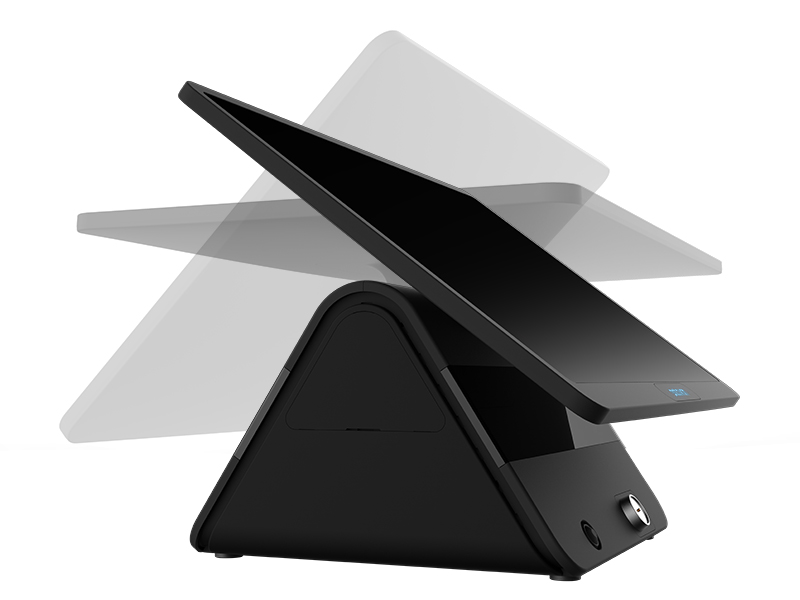

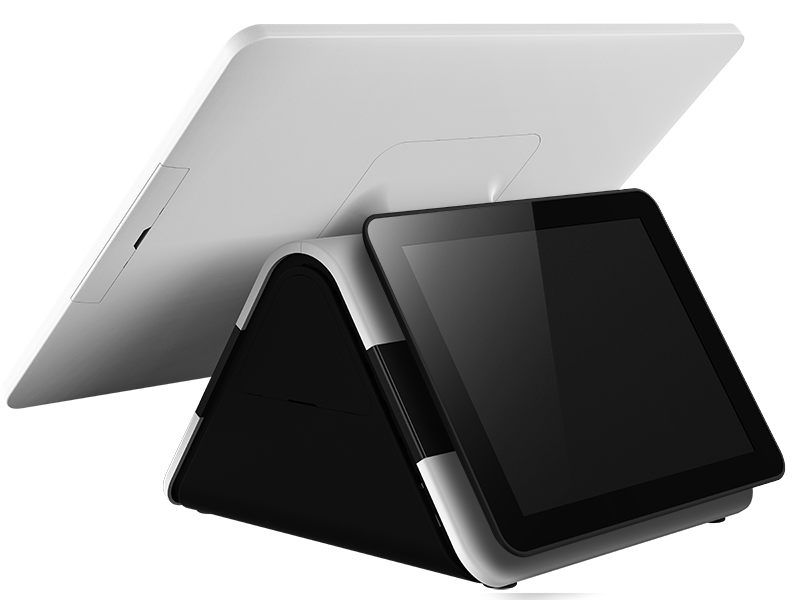

Exclusive flip-over display design

The award-winning design creates an amazing shopping experience!

Redefine the way you engage customers

● Retail & Hospitality
● Entertainment
● Property Management
● Healthcare Center
● Public service

Enhanced customer engagement

Enable revenue generating marketing initiatives. Capture mobile coupons/e-ticket right off customers’ smartphone, collect customer information for loyalty program and simplify the payment process.

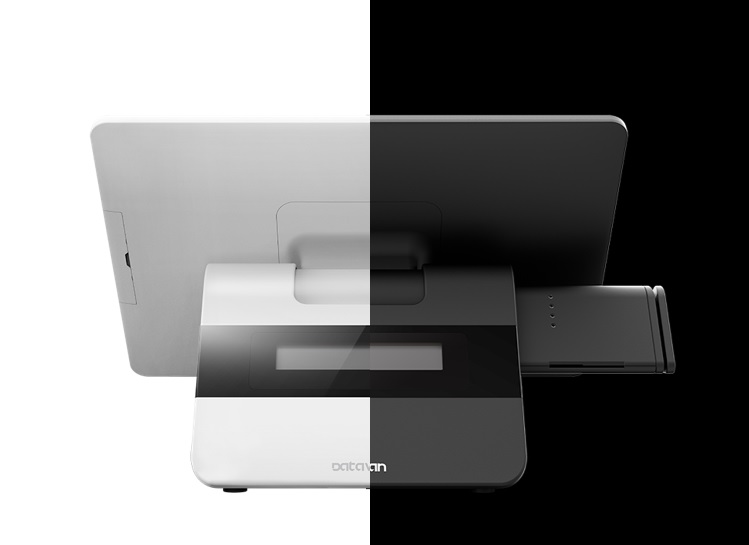

Customer-facing display

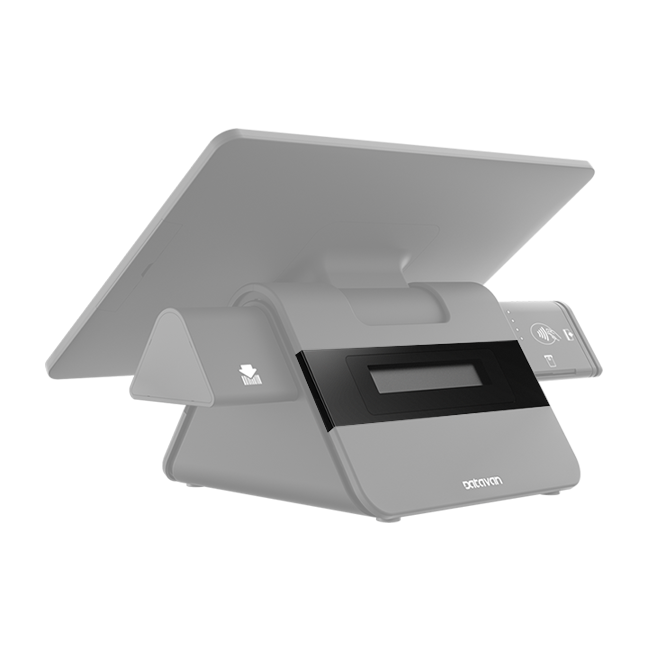

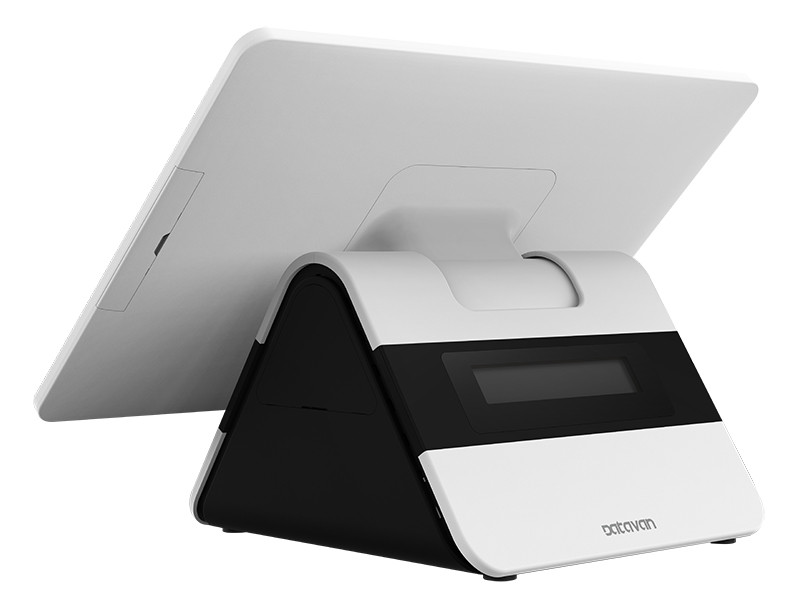

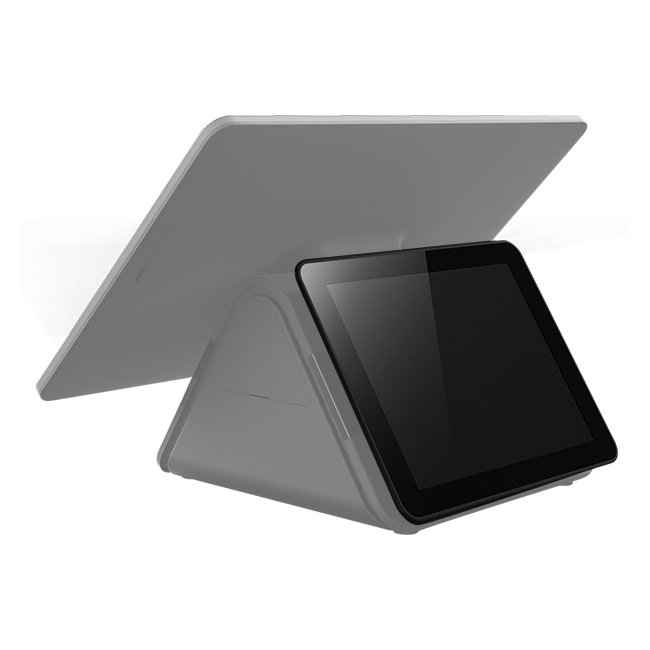

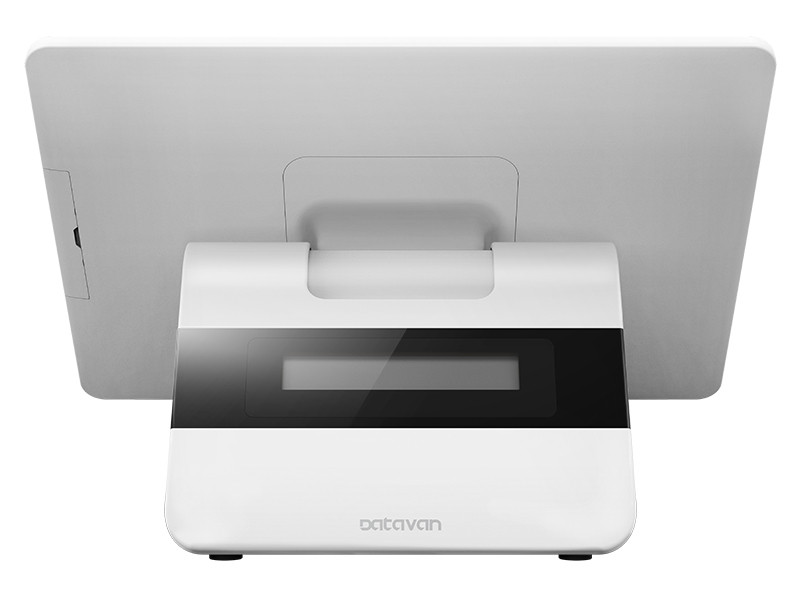

10” 2nd LCD Display (IPS) VFD Customer Display

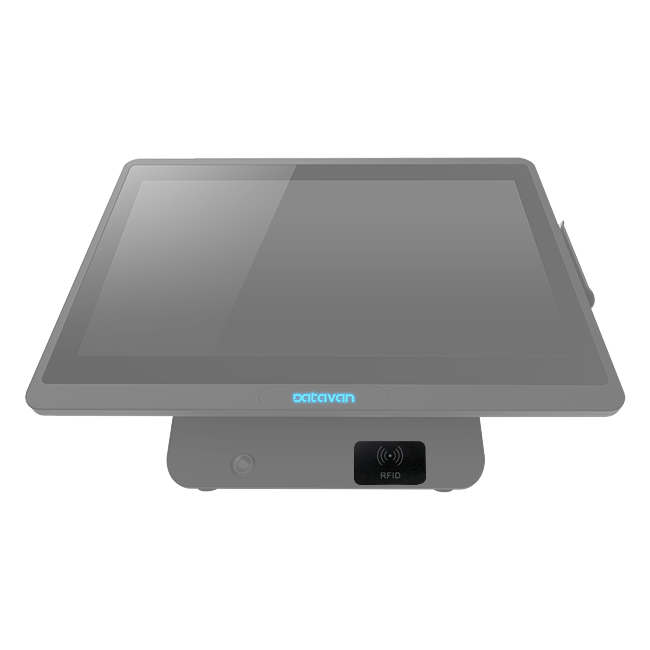

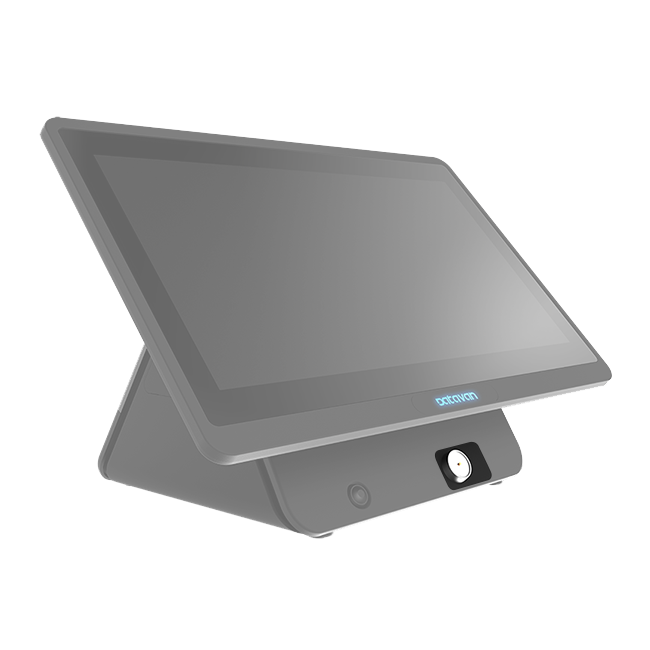

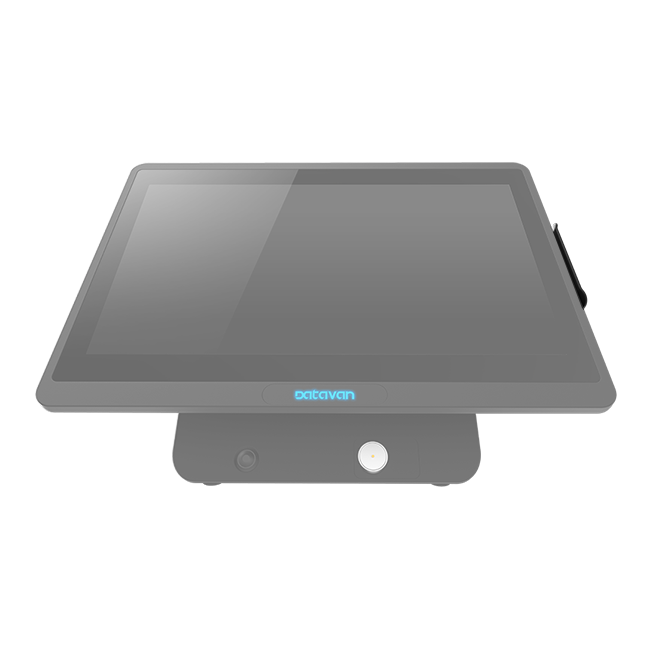

Magnetic Stripe Reader/ iButton Detector/ Biometrics Fingerprint Recognizer/ RFID Reader

Model Number T-415W T-615W T-815W
Processor Rockchip RK3288 Quad-core Cortex-A17 1.8 GHz Intel® Celeron® J1900 Quad-core Processor up to 2.4GHz (burst) Intel® Skylake U Processors
Celeron® 3955U 2.0GHz
Core™i3-6100U 2.3GHz
Core™i5-6300U 2.4GHz
OS Android 7.1 Windows 10 / Linux Kernel 3.0 or above
Memory Onboard DDR3 2GB / 4GB 1×DDR3L SO-DIMM up to 8GB 1×DDR3L SO-DIMM up to 16 GB
Storage eMMC 16GB / 32GB 1×2.5”SATA HDD or 1×2.5”S-ATA SSD
LCD Panel 15.6”LED-backlit display
Resolution 1366×768 Pixel
Brightness 220 cd/m2
Touch Screen True-flat Projected Capacitive Touch (10 Point multi-touch)
USB 4×USB 2.0
5×USB 2.0
2×USB 3.0
Serial Port 2×DB-9 Type (M) 4×DB9 RS 232 (default 0V; COM1, COM2, 0V/5V/12V by BIOS)
LAN 1×RJ-45 Gigabit LAN
Cash Drawer Port 1×RJ12 (12V Cash Drawer support only) 1×RJ12 12V/24V (default 24V for Cash Drawer)
Speaker 2×1W speaker
Line Out 1×Phone Jack 1×Phone Jack (optional)
MIC In 1×Phone Jack 1×Phone Jack (optional)
DC12V Output N/A 1×DC 12V Output (optional)
Extension Slot 1×SD Card slot (Up to 128GB) N/A
Adapter External DC power adapter 60W, 12V/ 5A External DC power adapter 65W, 19V/3.4A
Dimensions (W×D×H) 368×399×252 mm (14.49×15.71×9.92 Inch) 399×278×197 mm (157×109.5×77.6 Inch)
Weight 6.2 kg 6.6 kg
Safety & Environment
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -25°C to 70°C (-13°F to 158°F)
Safety Certifications CE / FCC
