VIVA Series

linux windows

Compelling package at an affordable price


Latest Intel® Elkhart Lake SoC processor
Easy access and swap SSD design
Projected capacitive 10-point multi-touch
Rugged aluminum die-casting enclosure

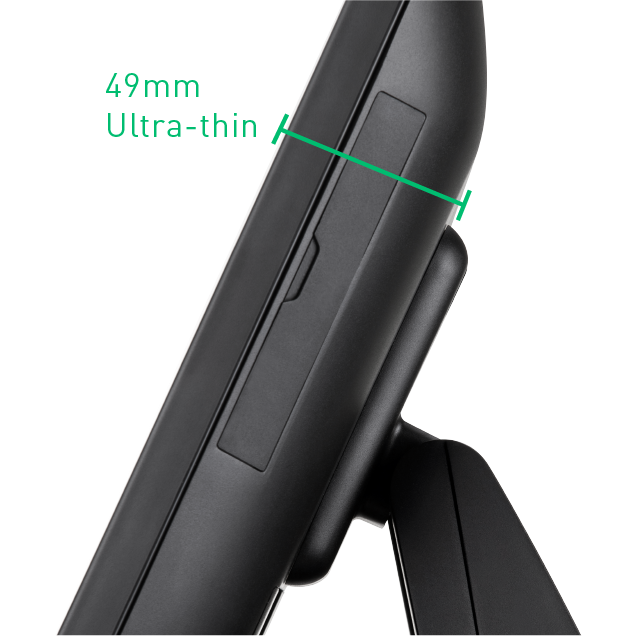

Ultra-slim and fanless design



Fast, Simple, Secure

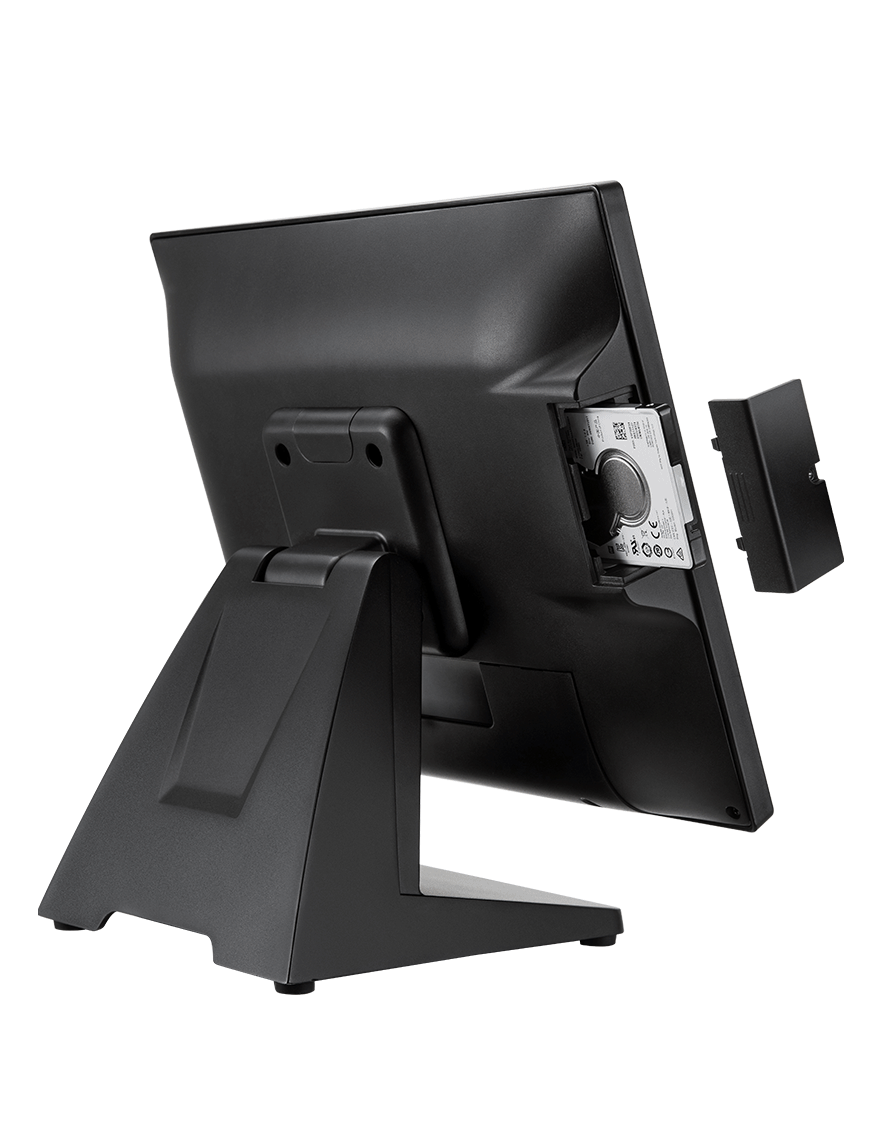

The hard drive can be quickly and simply installed / removed from the broadside of the Viva POS.

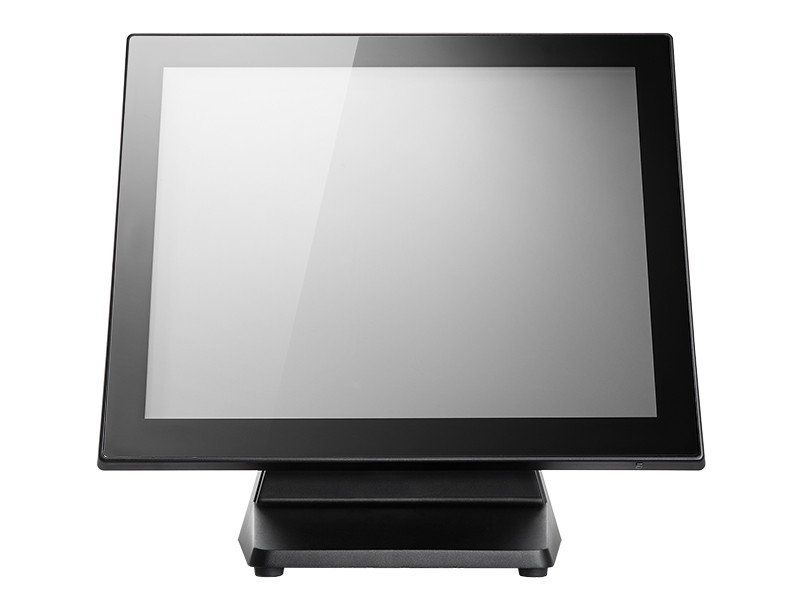

New Generation Stylish POS System With Ultra-Slim Design

Fashionable aluminum housing design helps for better heat dissipation.


Hassle-free Installation

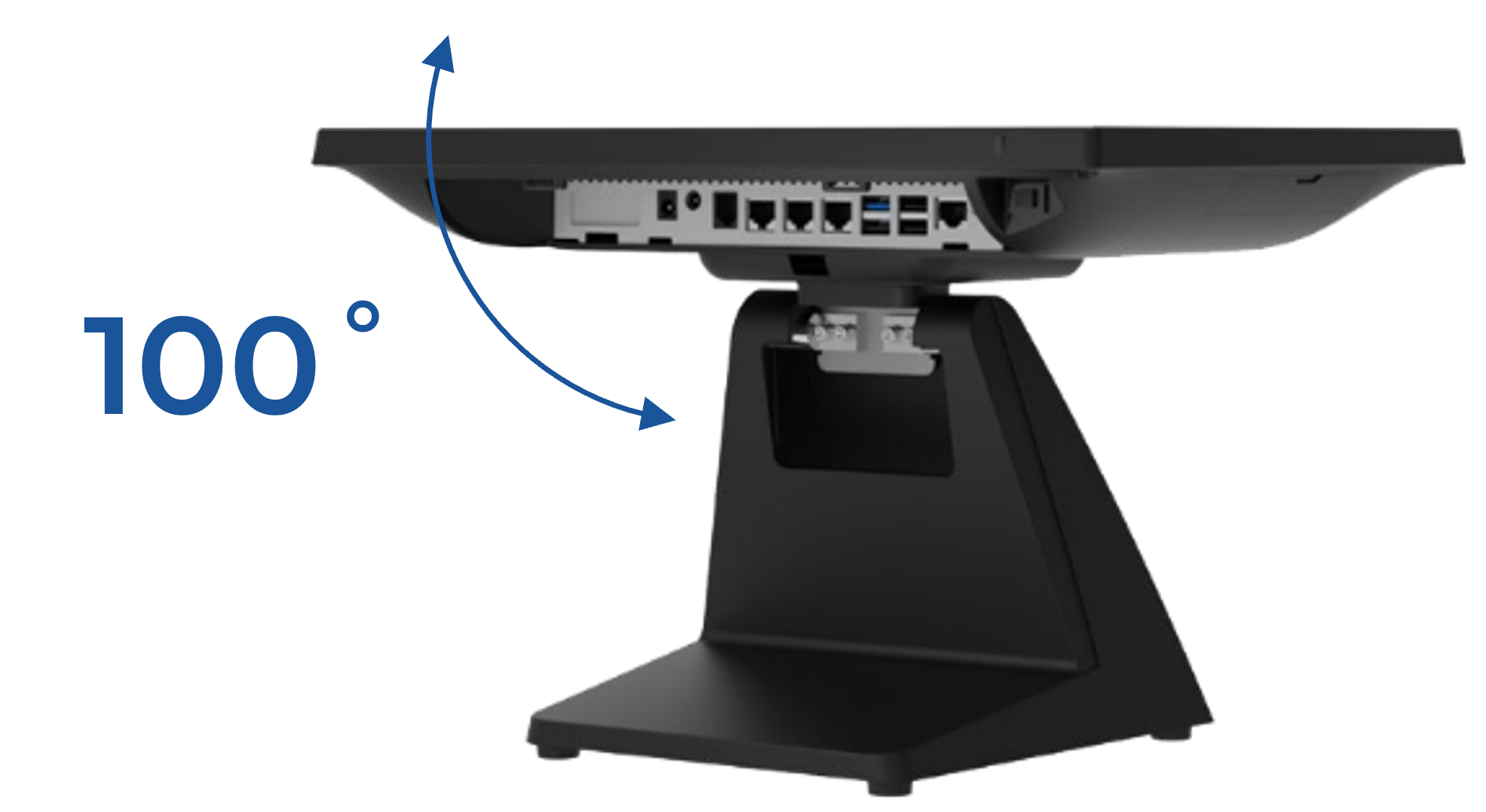

Smart stand design supporting 100-degree tilt angle makes wiring more easily.

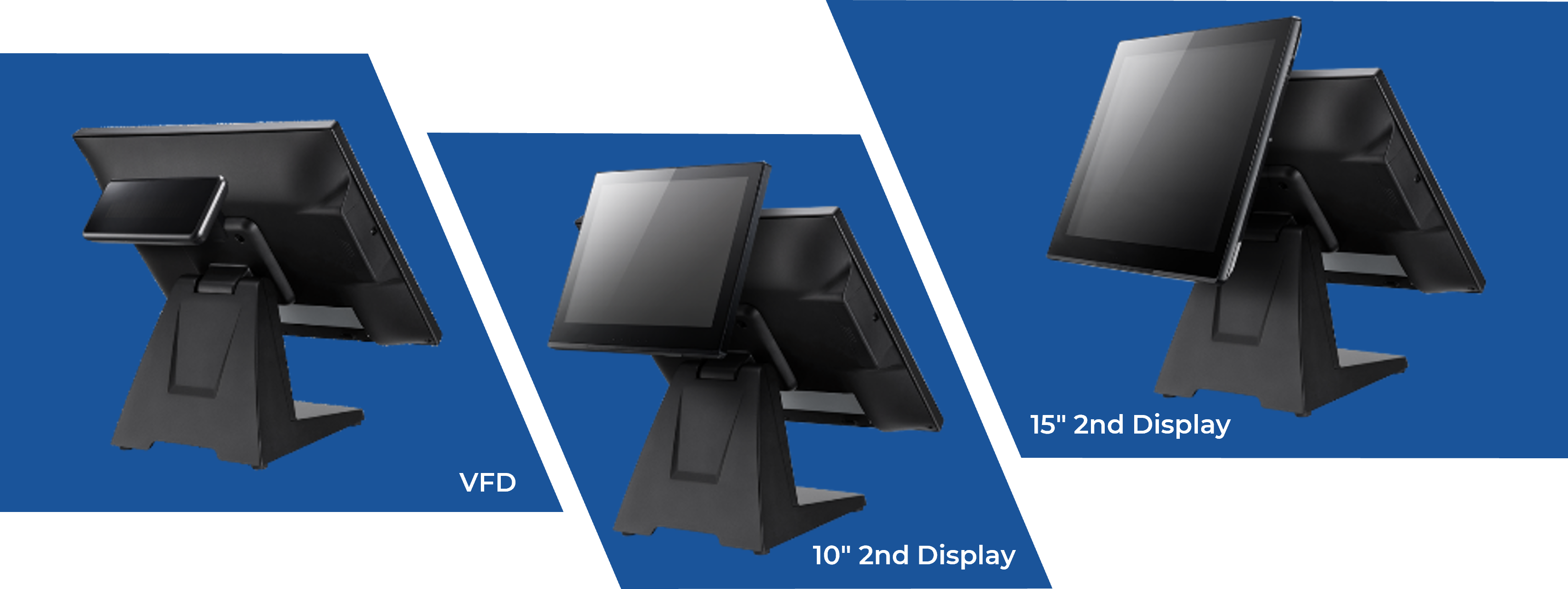

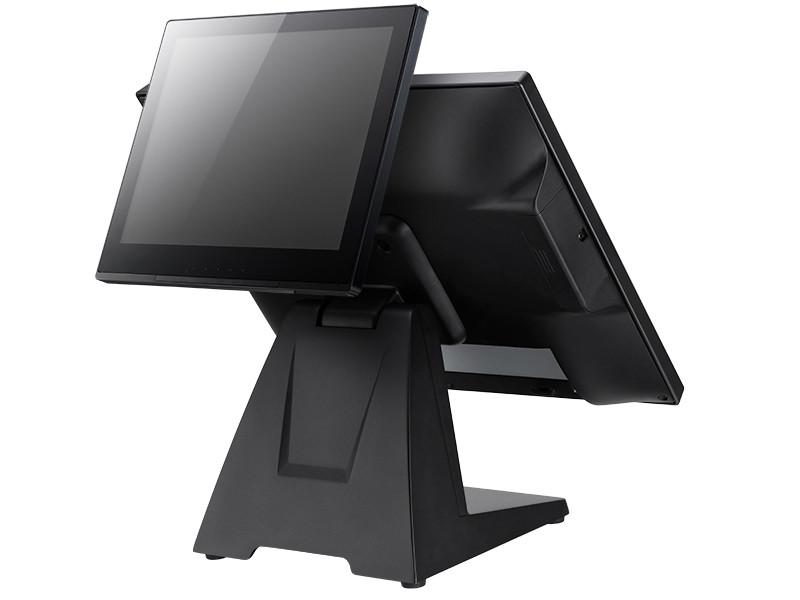

Integrated Extension Kits

Flexible for more peripherals to support diverse applications.

Model Number V-2150 V-2150E
System
Processor Intel® Celeron® J1900 (Quad-core) Intel® Celeron® Processor J6412
OS Win 7 Pro Embedded / Win Embedded POSReady7 / Win 10 IoT Enterprise 2016 LTSB / Win 10 IoT Enterprise 2019 LTSC Wi n 10 IoT Enterprise LTS C / Linux
Memory 4G / 8G 4G / 8G / 16G
Storage SSD: 64G / 128G / 256G or HDD: 500G SSD: 64G / 128G / 256G
M.2: 64G / 128G / 256G
HDD: 500 G
LCD
LCD Panel 15" LED Backlit LCD Display
Resolution 1024×768 Pixel (4:3)
Brightness 250 cd/m2
Touch
Touch Screen Flat Projected Capacitive Touch
I/O
Standard I/O 3×USB 2.0
1×USB 3.0
3×RJ-50 RS-232 (default 0V; COM1, COM2, COM3 0V/5V/12V by Jumper)
1×RJ45
1×RJ-11 12V/24V (default 24V for Cash Drawer)
1×DB15 VGA
1×DC 12V Out for DC Out
1×DC 12V In for DC In
2×USB 2.0
2×USB 3.0
3×RJ 50 RS 232 (default 0V; COM1, COM2, COM3 0V/5V/12V by Jumper)
1×LAN
1×RJ 11 12V/24V (default 24V for Cash Drawer)
1×HDMI
1×Audio Output Phone Jack
1×DC 12V Out for DC Out
1×DC 19V In with Lock for DC In
Buttons 1×Power On/Off Button
LED 1×Power status indicator

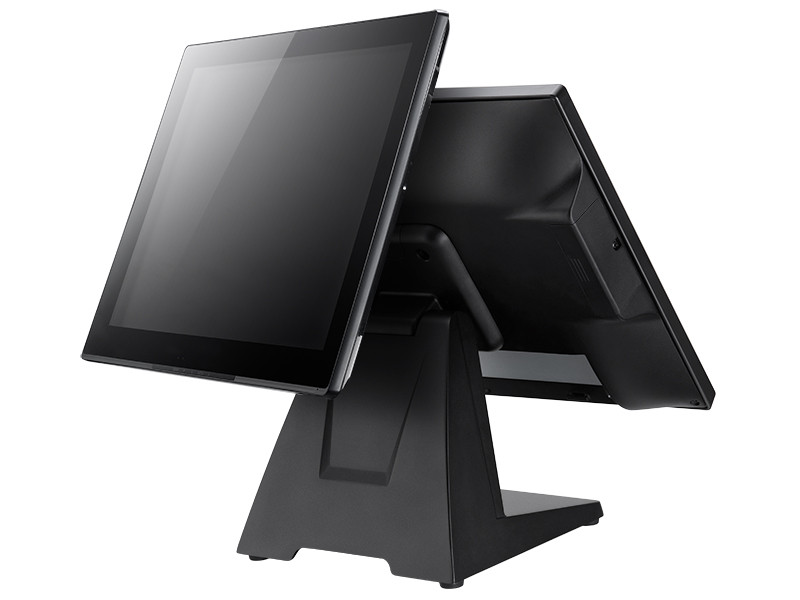

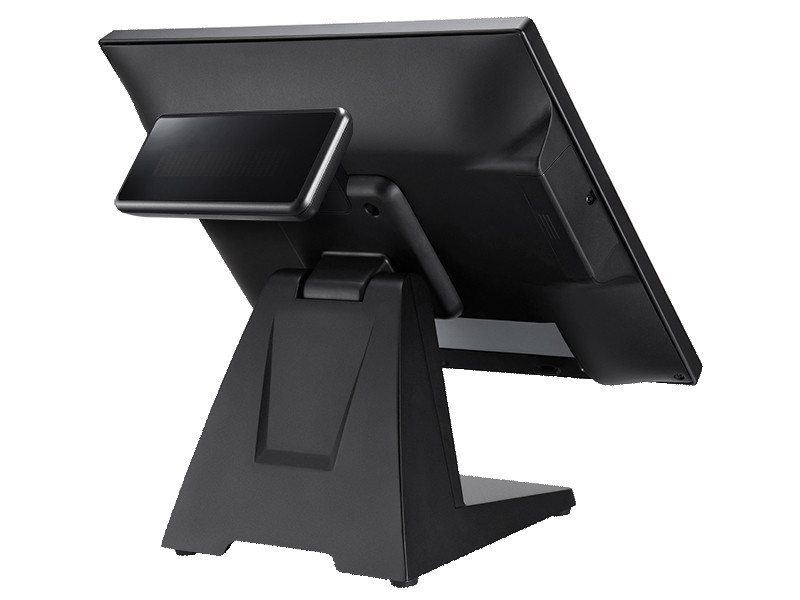

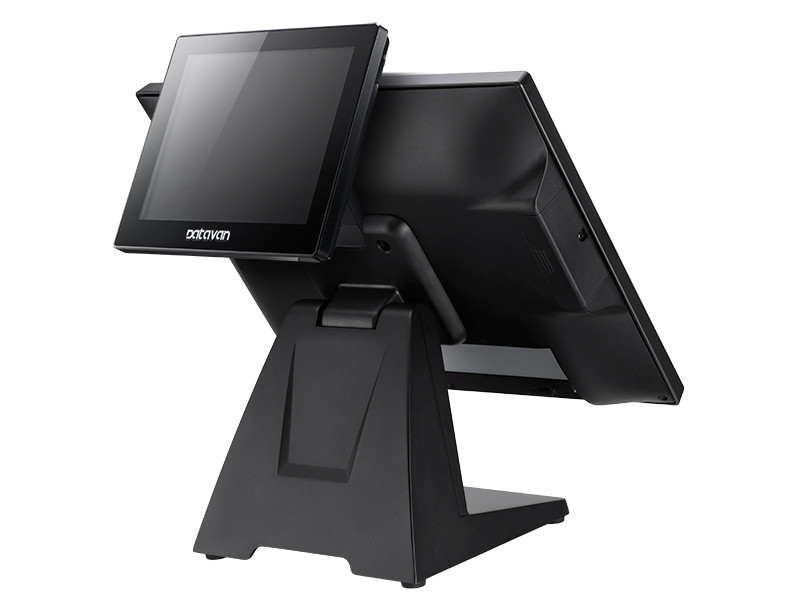

Extension Kits (Optional) MSR Card Reader Kit / RFID Reader Kit / iButton Reader Kit / Fingerprint Reader Kit / 2D Scanner Kit / VFD Customer Display Kit / 10" 2nd Display Kit / 15" 2nd Display Kit MSR Card Reader Kit / RFID Reader Kit / iButton Reader Kit / VFD Customer Display Kit / LCM Customer Display Kit / 10.4" 2nd Display Kit / 15" 2nd Display Kit
Power
Adapter External DC Power Adapter 60W, 12V 5A External DC P ower A dapter 65W, 19V 3.43A
Mechanical
Dimensions (W×D×H) 364×232×329 mm (14.33×9.13×12.95 Inch) 364×232×329 mm (14.33×9.13×12.95 Inch)
Weight 5.5 kg (12.13 lb) 5.5 kg (12.13 lb)
Safety & Environment
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -25°C to 70°C (-13°F to 158°F)
Safety Certifications CE / FCC
