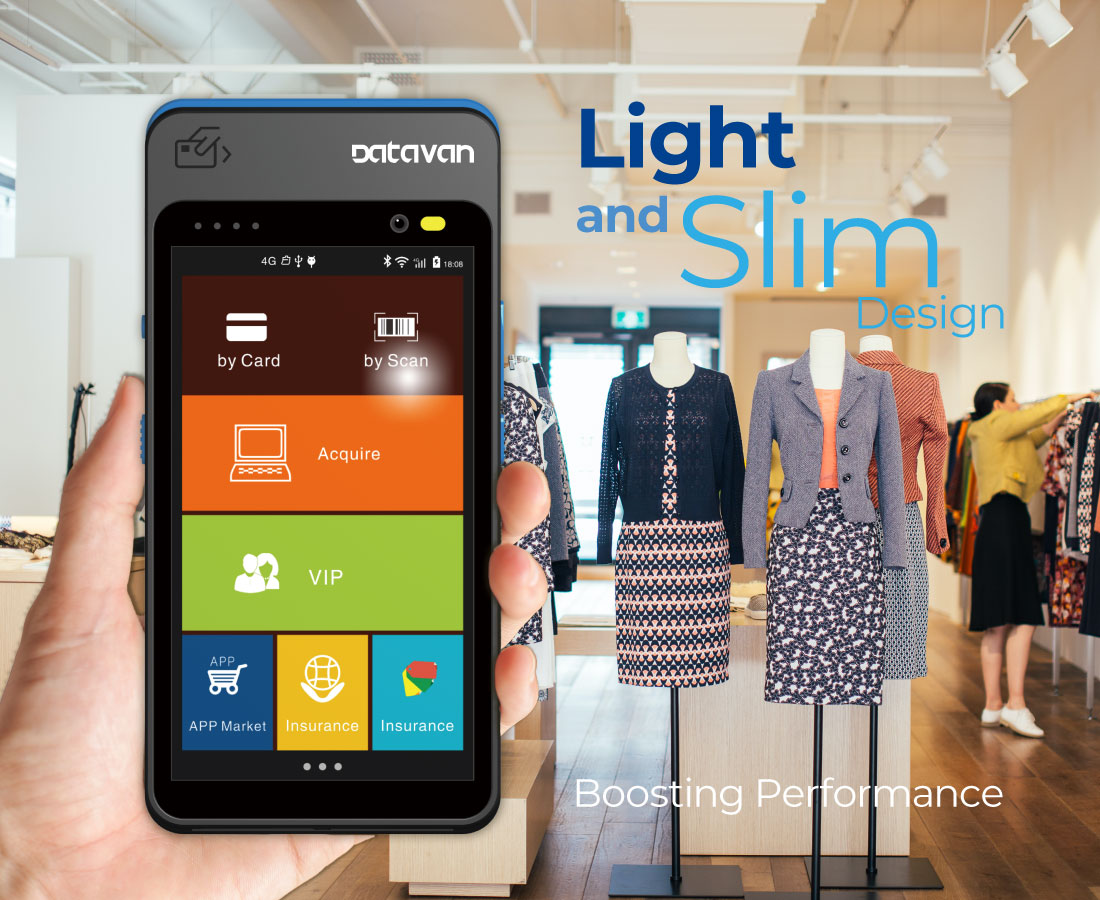

Light and Slim Design, Boosting Performance

Powered by Android 10

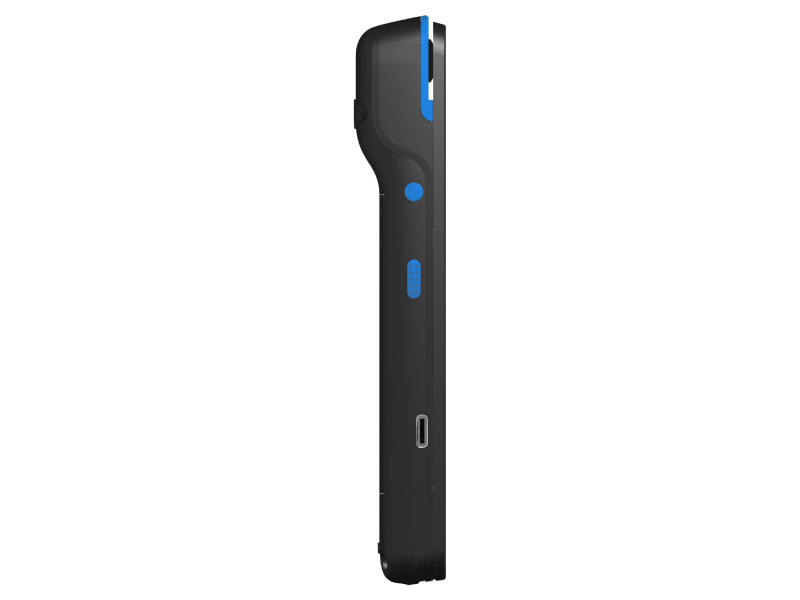

Ultra-slim and dust-proof design
Ideal for outdoor use
Accept multiple payment methods, including magnetic stripe, chip, NFC, barcode
Replaceable long life Li-Ion battery

An Extraordinary Essence Hidden Within a Minimalist Design

DTP-4000 incorporates the DNA of minimalism in its design while maintaining exceptional functionality. It provides comprehensive support for NFC mobile payments and QR code payments, and comes with dual cameras, offering merchants a mobile payment terminal choice that combines visual aesthetics and internal capabilities.

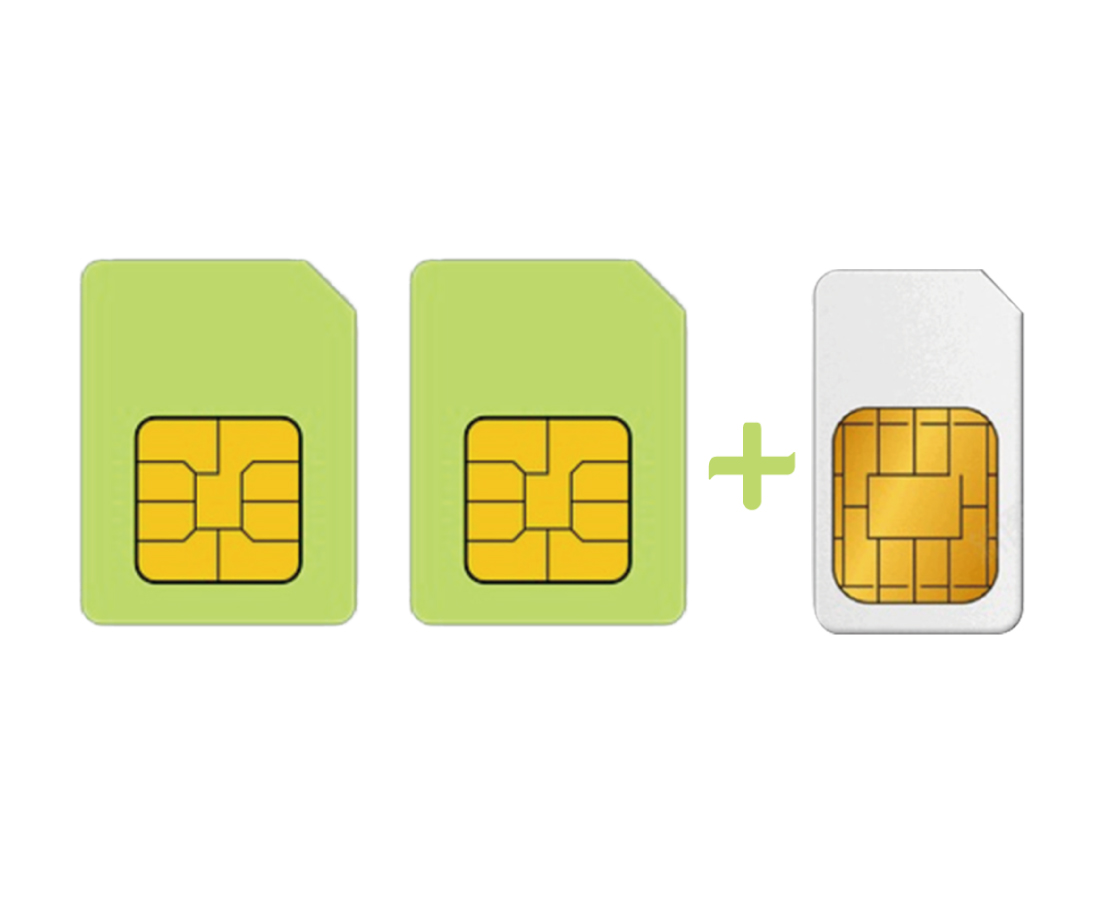

Highly Flexible Triple Card Slot Design

Offers 2 SIM card slots + 1 PSAM card slot, highly compatible with global frequency bands.

Comprehensive Support for Global Payment Certifications

Obtained certifications from international card organizations such as Visa, Mastercard, American Express, Discover, etc. It offers a high level of security and creates the most seamless payment experience for customers.

Maximize Efficiency in Commercial Spaces

The lightweight and slim design of DTP-4000 not only makes it easy for merchants to use but also reduces space waste, allowing businesses to make the most out of their commercial spaces!

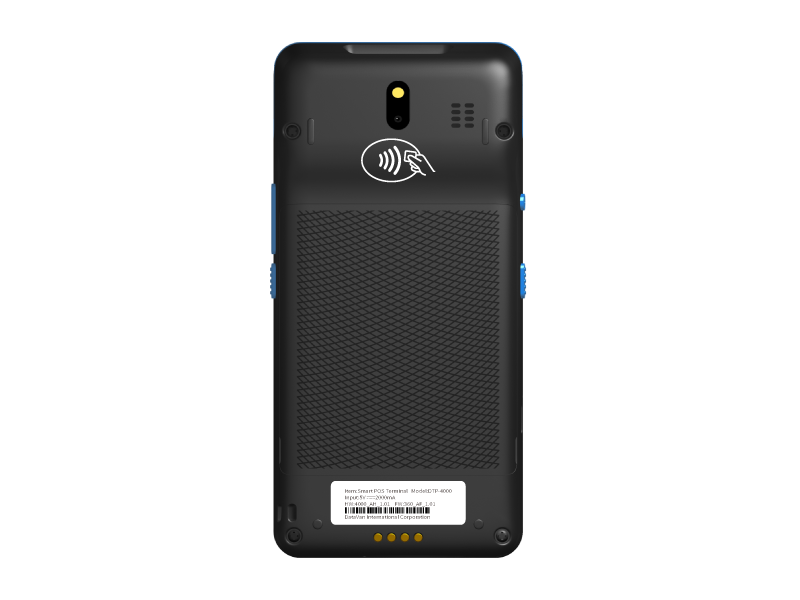

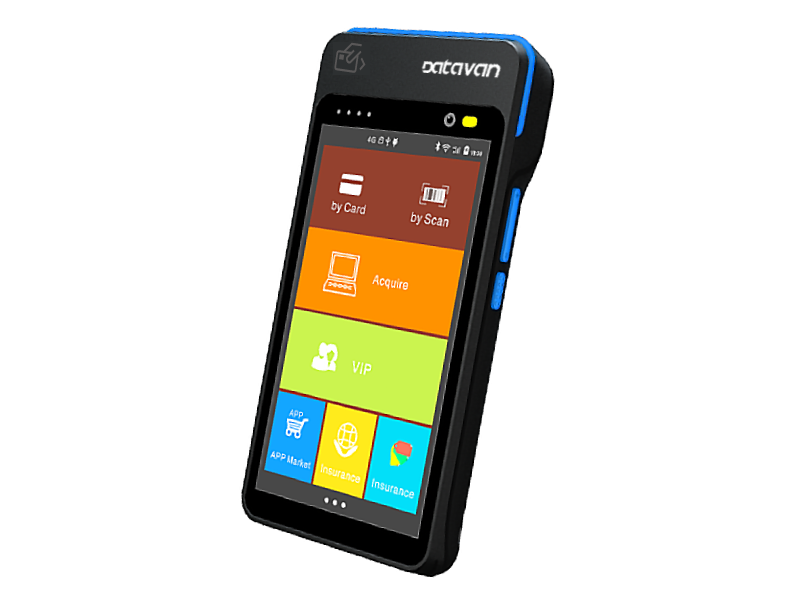

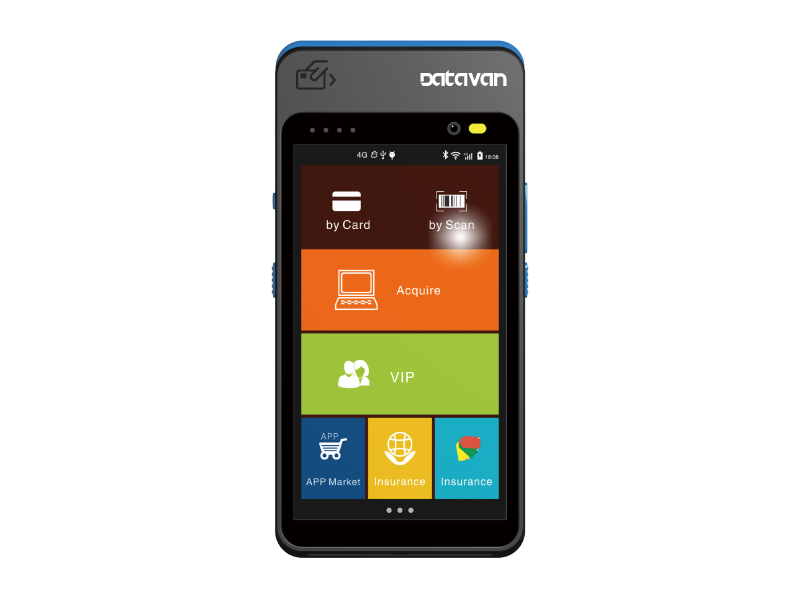

Model Number DTP-4000
Processor ARM Quad-Core general processor + special secure CPU
OS Android 10
Memory 1 or 2 GB DDR3 RAM, 8 or 16GB EMMC, up to 128GB (TF Card)
Display Screen 5-inch 720×1280 pixel IPS Color Screen
Touch Multi-point capacitive touch screen
Magnetic Card Reader Track 1/2/3, Bi-Directional ISO7811 Standard
IC Card Reader Smart IC card reader, ISO 7816, EMV Standard
NFC Reader Support ISO14443 Type A/B, Mifare Card, Conform to qPBOC L1 & L2 standard
Fingerprint Scanner Support STQC-certified fingerprint module (optional)
Camera Front: 0.3 Megapixel
Rear: 5 Megapixel
Barcode Scanner Optional 1D or 2D dedicated decoding module
Audio Support Voice Playing
Sensor Support 3-axis gravity sensoring, Proximity light sensor (optionall)
Vibration Built-in vibrating motor (optionall)
Communication 4G (2G/3G Compatible)
Wi-Fi: IEEE 802.11 b/g/n
Support Bluetooth 4.0
GPS Built-in GPS
Physical Port 1×USB Type C port
Physical Key Power switch, Scan button, Sound volume +/-
Card Slots 2 SIM card and 1 PSAM card
Power Supply Input: AC 100V-240V
Output: DC 5V/2A
Battery 3.8V 3000 mAh or 4000 mAh
Dimensions 76.2×153.7×18 mm (part 24.8 mm)
Weight 190 g
Operating Temperature 0°C to 40°C Relative
Humidity 5% to 95%, non-condensing
Certifications EMV / PCI / Visa / Mastercard / American Express / Discover / CE/ RoHS
