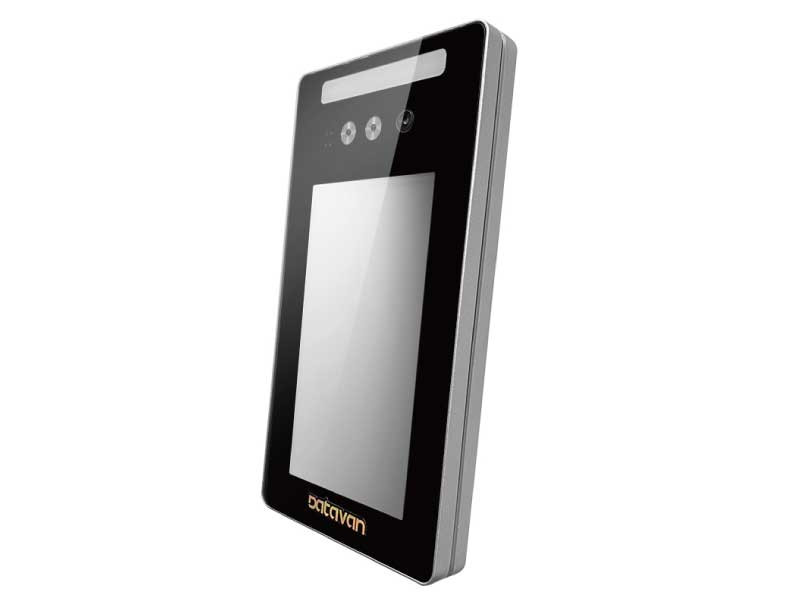

Facelook X1
測溫和人臉識別一體化設計
測溫功能 + 人臉識別門禁雙效合一，8吋面板精美設計一體成型
0.5秒精準測溫，紅外線溫度點陣分析，防疫無漏洞
超強演算法結合智能學習，戴口罩也能精準人臉辨識，未戴者則輸出警報
超大容量可容納24,000張人臉庫 + 160,000筆門禁進出記錄
後台大數據可隨時監控防護實況，提升執行效率，降低傳染風險
室內及半戶外場景皆可靈活安裝，快速啟用
支援企業內部私有雲及外部SaaS平臺分散式部署
一體化設計
測溫和人臉識別一體化設計
快而準的識別
溫感與人臉識別速度
安裝快速，隨插即用

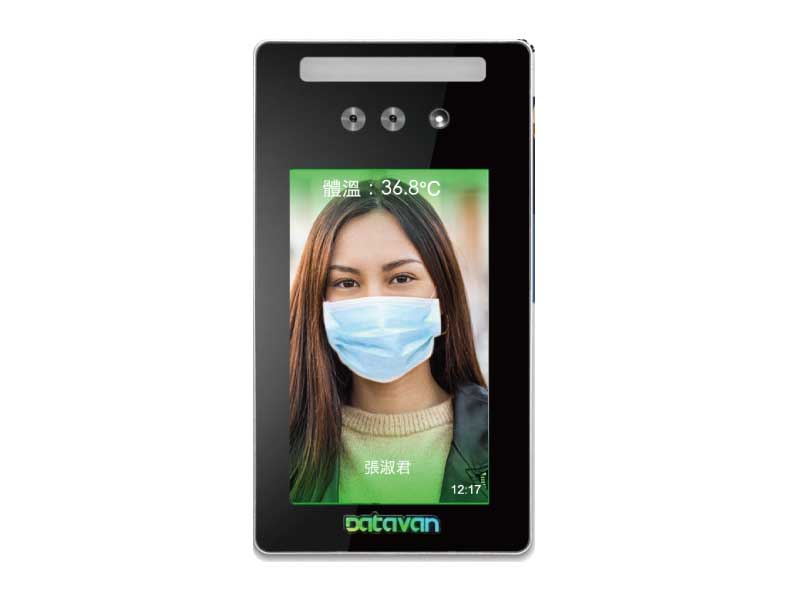

戴上口罩也能精準識別
累積50萬組戴口罩人臉樣本，保證戴口罩人臉識別準確率99%
大容量人臉庫與通行儲存
人臉庫存
24000張
16G（支持TF擴展，Max 64G）
離線儲存
5萬條抓拍記錄，Max 16萬
客製化您的需求
標準API文件提供
快速打造軟體需求
回應市場需求迅速
持續開發系統功能
增加運作彈性與效率

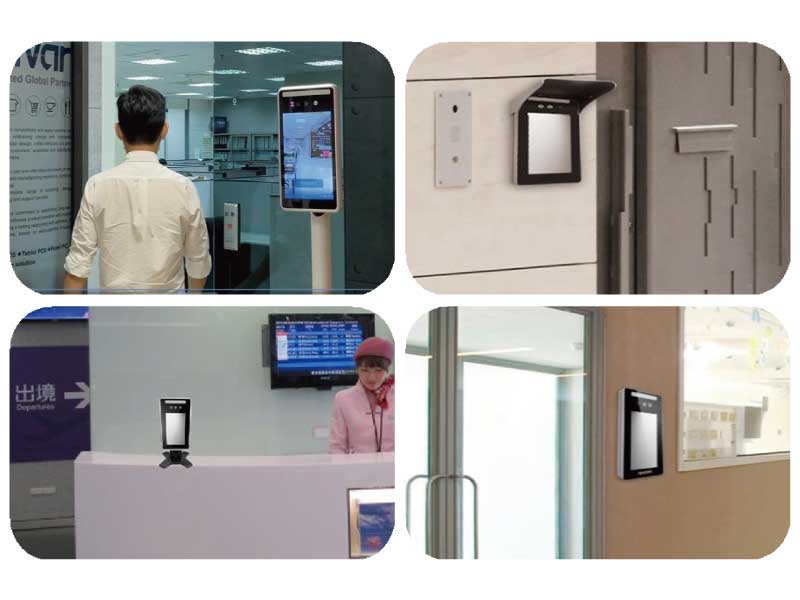

多元化應用
| Model Number | Facelook X1 | ||
|---|---|---|---|
| Temperature Detect | |||
| Operating Temperature | 15°C to 35°C (Indoor) | ||
| Temperature Detection Range | 30°C to 45°C | ||
| Variation Range | ±0.3°C | ||
| Detecting Distance (Horizontal) | 30 to 50 cm | ||
| Abnormal Warning | Exceed 37.3°C forehead temperature | ||
| Precautions | 20 to 30 mins device warm up is recommended before use to ensure highest accuracy | ||
| Facial Recognition | |||
| Detecting Range (Vertical) | 0.8 to 2.2 m, adjustable angle | ||
| Face Angle | Horizontal 30° Vertical 30° |
||
| Response Time | ＜0.5 seconds | ||
| Storage Capacity | 50,000 access records | ||
| Facial Image Capacity | 24,000 face images | ||
| Face Recognition Accuracy | ＞99.25% | ||
| Camera | |||
| Camera | Binocular camera, visible and near infrared | ||
| Effective MegaPixels | 2.1M Pixels, 1920×1080 | ||
| Minimum Illumination | multicolor 0.01Lux @F1.2(ICR); Black and white 0.001Lux @F1.2(ICR) | ||
| Signal to Noise Ratio | ≥50db (AGC OFF) | ||
| Wide Dynamic | 120db ISP algorithm face partial exposure | ||
| Image Sensor | 1/2.8" Progressive Scan CMOS | ||
| Interface | |||
| Switch Output | 1×Switch output (KZ_OUT) | ||
| Network | 1×RJ45 10M/100M Ethernet port | ||
| USB | 1×USB (Reserved) | ||
| Wiegand | 1×WG in (Reserved), 1×WG out (Reserved) | ||
| System | |||
| CPU | Dual-core processor+1G RAM +16G Flash | ||
| Screen Size | 8 inches | ||
| OS | Linux | ||
| Speaker | Standard and pre-recorded contents | ||
| Power | |||
| Power Requirement | DC12V/2A | ||
| Power Consumption | 20W (MAX) | ||
| Mechanical | |||
| Dimensions (L×W×H) | 252×136×26 mm | ||
| Weight | 1.7 kg | ||
| Environment | |||
| Operating Temperature | Indoor recommended 0 to 90% RH | ||
| Anti-static | Contact ±6KV, Air ±8KV | ||
