android linux windows

Spend less for more values

Latest Intel® Elkhart Lake SoC processor
15-inch bezel-free touch screen
Water/dust proof front bezel
Small footprint
Well-organized cable management

without compromising quality

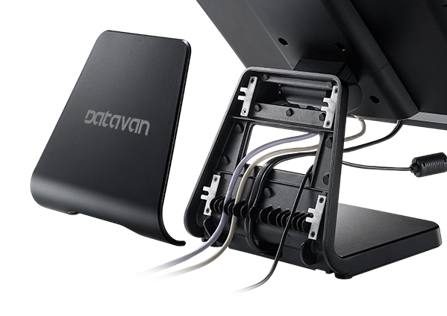

Cable management system


Hassle-free installation

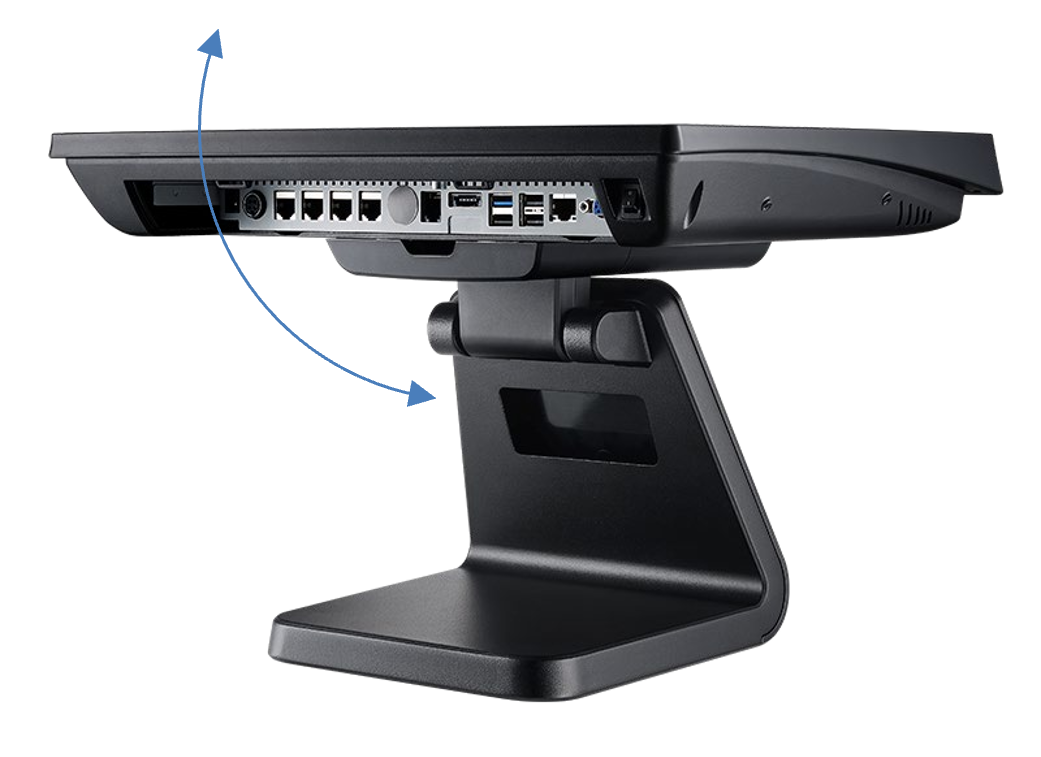

A wide range of tilt angle makes wiring more easily.

Multiple storage area

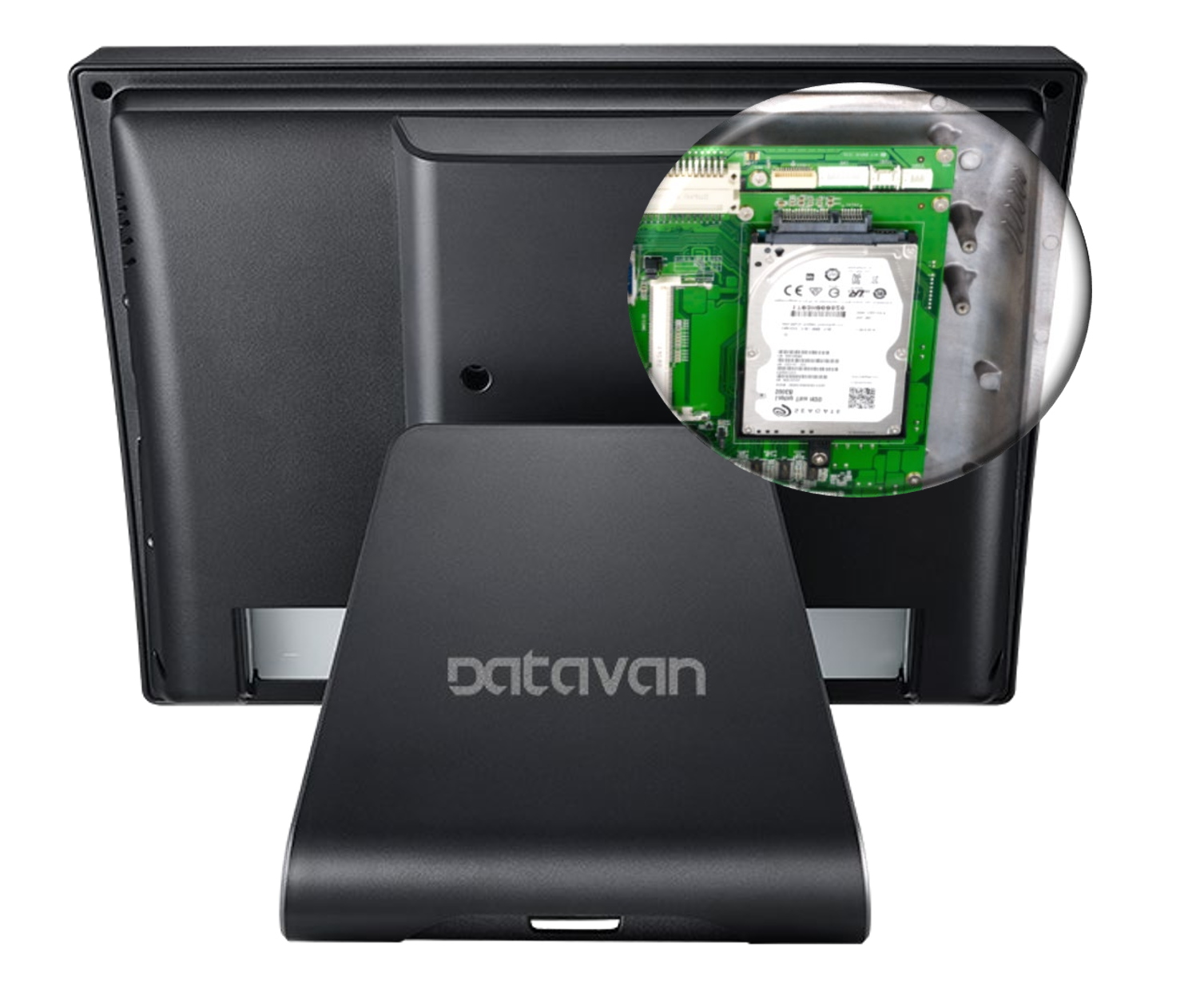

● The hard drive can be installed either in the system for device security or in the stand for easy swap.
● Dual drives available.

Design withstand harsh hospitality & retail environment

● Rock solid
● Bezel-free
● Water/dust Proof
● Fanless System

Model Number W-615 W-615E
Processor Intel® Celeron® J1900 (Quad core) Intel® Celeron® Processor J6412
OS Win 7 Pro Embedded / Win Embedded POSReady7 / Win 10 IoT Enterprise 2016 LTSB / Win 10 IoT Enterprise 2019 LTSC Wi n 10 IoT Enterprise LTS C / Linux
Memory 4G / 8G 4G / 8G / 16G
Storage SSD: 64G / 128G / 256G or HDD: 500G SSD: 64G / 128G / 256G
M.2: 64G / 128G / 256G
HDD: 500 G
LCD Panel 15" LED Backlit LCD Display
Resolution 1024×768 Pixel (4:3)
Brightness 300 cd/m2
Touch Screen Flat Projected Capacitive Touch
Standard I/O 3×USB 2.0
1×USB 3.0
4×RJ 50 RS 232 (default 0V; COM1 0V/5V/12V by BIOS; COM2, COM3, COM4 0V/5V/12V by Jumper)
1×eSATAp USB2.0 Combo
1×RJ11 12V/24V (default for Cash Drawer)
1×Audio Output Phone Jack
1×DB15 VGA
1×DC 12V Out for DC Out
1×DC 19V In with Lock for DC In
2×USB 2.0
2×USB 3.0
4×RJ 50 RS 232 (default 0V; COM1, COM2, COM3, COM4 0V/5V/12V by Jumper)
1×RJ11 12V/24V (default 24V for Cash Drawer, Support Dual Cash Drawer)
1×Audio Output Phone Jack
1×DC 12V Out for DC Out
1×DC 19V In with Lock for DC In
External I/O (by Project) N/A 1×USB Type C data only
1×Powered USB 12V
1×Powered USB 24V
Buttons 1×Power On/Off Button
Extension Kits (Optional) MSR Card Reader Kit / RFID Reader Kit / iButton Reader Kit / Fingerprint Reader Kit / VFD Customer Display Kit / 10" 2nd Display Kit / 15" 2nd Display Kit
Speaker 1×Internal Speaker (1W) 1×Internal Speaker (2W)
Adapter External DC Power Adapter 65W, 19V 3.43A
Dimensions (W×D×H) 370×268×325 mm (14.57×10.55×12.8 Inch) 370×246×327 mm (14.57×9.69×12.87 Inch)
Weight 6.6 kg (14.55 lb) 6.6 kg (14.55 lb)
Safety & Environment
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -25°C to 70°C (-13°F to 158°F)
Safety Certifications CE / FCC
