Puzzle 4000
外型精巧，效能強大
更佳的CPU與顯示表現
高度可配置性
支援Dual 4K UHD display
強化安全性與管理功能
完美適用於電子看板、KIOSK、遊戲等產業應用
支援壁掛
針對特定需求量身定制
提供可靠性和穩定性來增強您的業務
PUZZLE 4000
將充足的電量裝入手掌大小的包裝中，這種輕量級設計使其易於部署和儲存。
安裝在任何地方
外殼與 VESA 安裝支架相容，這意味著您可以將 Puzzle 安裝在牆壁上、櫃檯下或資訊亭外殼內。
| Model Number | Puzzle-4000 | ||
|---|---|---|---|
| System | |||
| CPU | Intel® 7th Gen Kaby Lake Desktop Processor | ||
| RAM | 4G/8G/16G | ||
| OS | Win 10 IoT Enterprise 2016 LTSB / Win 10 IoT Enterprise 2019 LTSC | ||
| Storage | SSD: 64G 128G 256G or HDD: 500G | ||
| Multimedia | |||
| Speaker | 1×Internal Speaker (1W) | ||
| I/O | |||

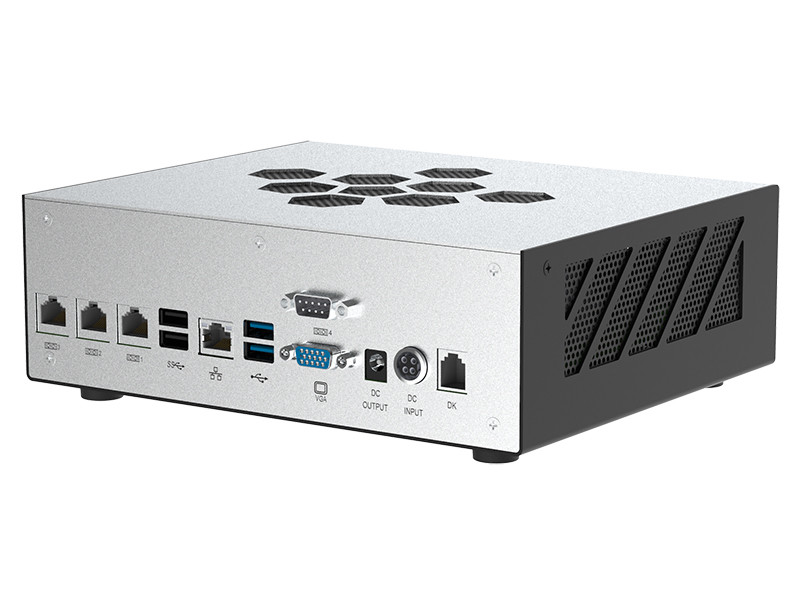

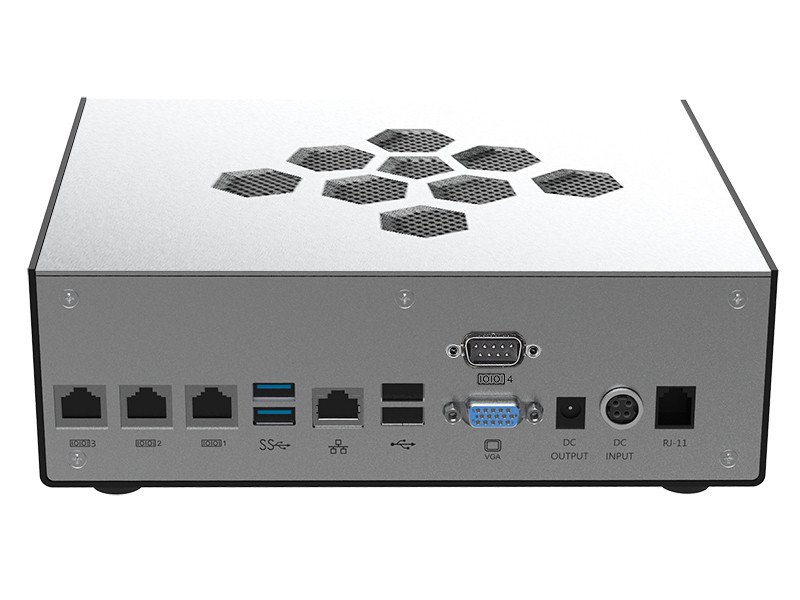

| Standard I/O | 8×USB 2.0 2×USB 3.0 3×RJ-50 RS-232 (default 0V; COM1, COM2, COM3 0V/5V/12V by Jumper) 1×DB9 RS-232 (COM4) 1×RJ45 1×RJ 11 12V/24V (default 24V for Cash Drawer) 1×DB15 VGA 1×HDMI 1×Line out 1×DC 12V Out for DC Out 1×DC 24V In with Lock for DC In |
||
| Buttons | 1×Power On/Off Button | ||
| Power | |||
| Adapter | External DC Power Adapter 120W, 24V 5A | ||
| Mechanical | |||
| Dimensions (W×D×H) | 185×225×79 mm (7.28×8.86×3.11 in) | ||
| Weight | 3 kg (6.61 lb) | ||
| Environment | |||
| Operating Temperature | 0°C to 40°C (32°F~104°F) | ||
| Storage Temperature | -25°C to 70°C (-13°F~158°F) | ||
| Safety Certifications | CE/FCC | ||
