WONDER Series
超高性價比之選
配備最新Intel® Elkhart Lake SoC處理器
15吋無邊框全平面觸控螢幕
防水防塵，便捷耐用
節能低噪音
可收納線材的貼心設計
經濟實惠 高品質無須妥協
線路精簡收納管理
免工具安裝

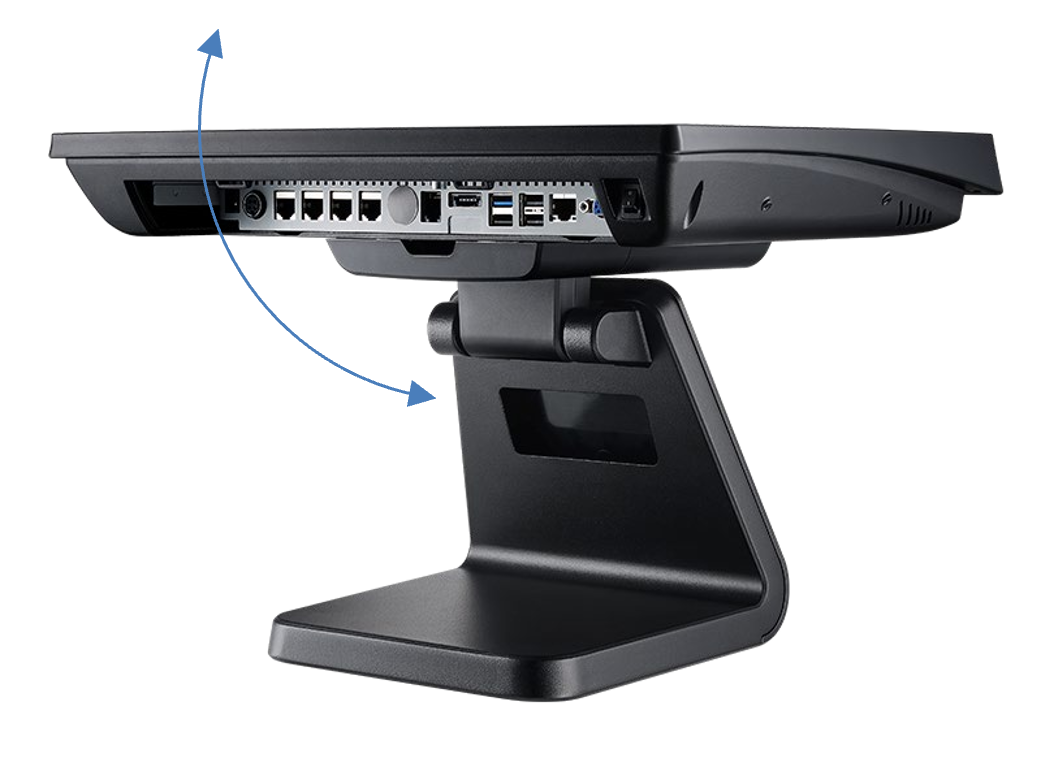

大角度傾斜，提供各式插孔，裝卸線路輕鬆便利
硬體雙效儲存區
● 硬碟可依需求選擇安裝於高安全性區域；或是安裝於方便拆裝抽換之底座
● 可同時安裝雙硬碟
超高環境耐受性，通過溫溼度嚴苛大挑戰 各式餐飲業及零售業皆適用
● 磐石級堅固
● 無邊框設計
● 防水防塵
● 靜音無風扇散熱系統
| Model Number | W-615 | W-615E | ||||
|---|---|---|---|---|---|---|
| System | ||||||
| Processor | Intel® Celeron® J1900 (Quad core) | Intel® Celeron® Processor J6412 | ||||
| OS | Win 7 Pro Embedded / Win Embedded POSReady7 / Win 10 IoT Enterprise 2016 LTSB / Win 10 IoT Enterprise 2019 LTSC | Wi n 10 IoT Enterprise LTS C / Linux | ||||
| Memory | 4G / 8G | 4G / 8G / 16G | ||||
| Storage | SSD: 64G / 128G / 256G or HDD: 500G | SSD: 64G / 128G / 256G M.2: 64G / 128G / 256G HDD: 500 G |
||||
| LCD | ||||||
| LCD Panel | 15" LED Backlit LCD Display | |||||
| Resolution | 1024×768 Pixel (4:3) | |||||
| Brightness | 300 cd/m2 | |||||
| Touch | ||||||
| Touch Screen | Flat Projected Capacitive Touch | |||||
| I/O | ||||||
| Standard I/O | 3×USB 2.0 1×USB 3.0 4×RJ 50 RS 232 (default 0V; COM1 0V/5V/12V by BIOS; COM2, COM3, COM4 0V/5V/12V by Jumper) 1×RJ45 1×eSATAp USB2.0 Combo 1×RJ11 12V/24V (default for Cash Drawer) 1×Audio Output Phone Jack 1×DB15 VGA 1×DC 12V Out for DC Out 1×DC 19V In with Lock for DC In |
2×USB 2.0 2×USB 3.0 4×RJ 50 RS 232 (default 0V; COM1, COM2, COM3, COM4 0V/5V/12V by Jumper) 1×LAN 1×RJ11 12V/24V (default 24V for Cash Drawer, Support Dual Cash Drawer) 1×Audio Output Phone Jack 1×HDMI 1×DC 12V Out for DC Out 1×DC 19V In with Lock for DC In |
||||
| External I/O (by Project) | N/A | 1×USB Type C data only 1×Powered USB 12V 1×Powered USB 24V |
||||
| Buttons | 1×Power On/Off Button | |||||
| Extension Kits (Optional) | MSR Card Reader Kit / RFID Reader Kit / iButton Reader Kit / Fingerprint Reader Kit / VFD Customer Display Kit / 10" 2nd Display Kit / 15" 2nd Display Kit | |||||
| Speaker | 1×Internal Speaker (1W) | 1×Internal Speaker (2W) | ||||
| Power | ||||||
| Adapter | External DC Power Adapter 65W, 19V 3.43A | |||||
| Mechanical | ||||||
| Dimensions (W×D×H) | 370×268×325 mm (14.57×10.55×12.8 Inch) | 370×246×327 mm (14.57×9.69×12.87 Inch) | ||||
| Weight | 6.6 kg (14.55 lb) | 6.6 kg (14.55 lb) | ||||
| Safety & Environment | ||||||
| Operating Temperature | 0°C to 40°C (32°F to 104°F) | |||||
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) | |||||
| Safety Certifications | CE / FCC | |||||
